3D printer ventilation

A custom cabinet and ventilation system for a QIDI I-FAST printer, connecting the printer’s outlet fan to a window outlet through purpose-made interfaces and a portable-AC accordion duct.

CAD interfaces · Cabinet fabrication · Ventilation integration

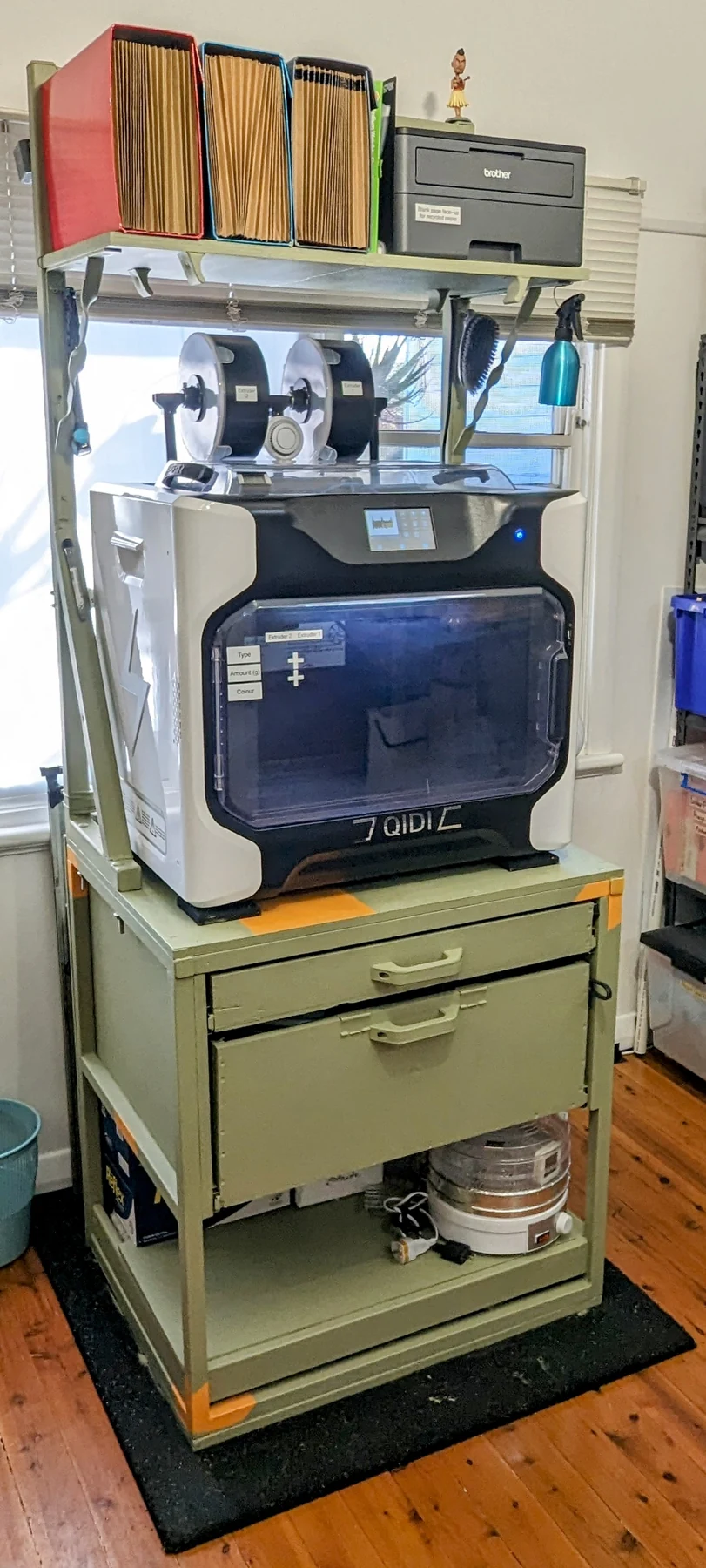

Printer and completed cabinet

What I did

Built a cabinet to support the printer and integrate the ventilation route with the workspace.
Modelled custom interfaces around the printer outlet fan and cabinet. Non-standard design was used for the duct support connection.
Used a portable-AC accordion duct and a window outlet with a HEPA filter to route the exhaust outside.

Design

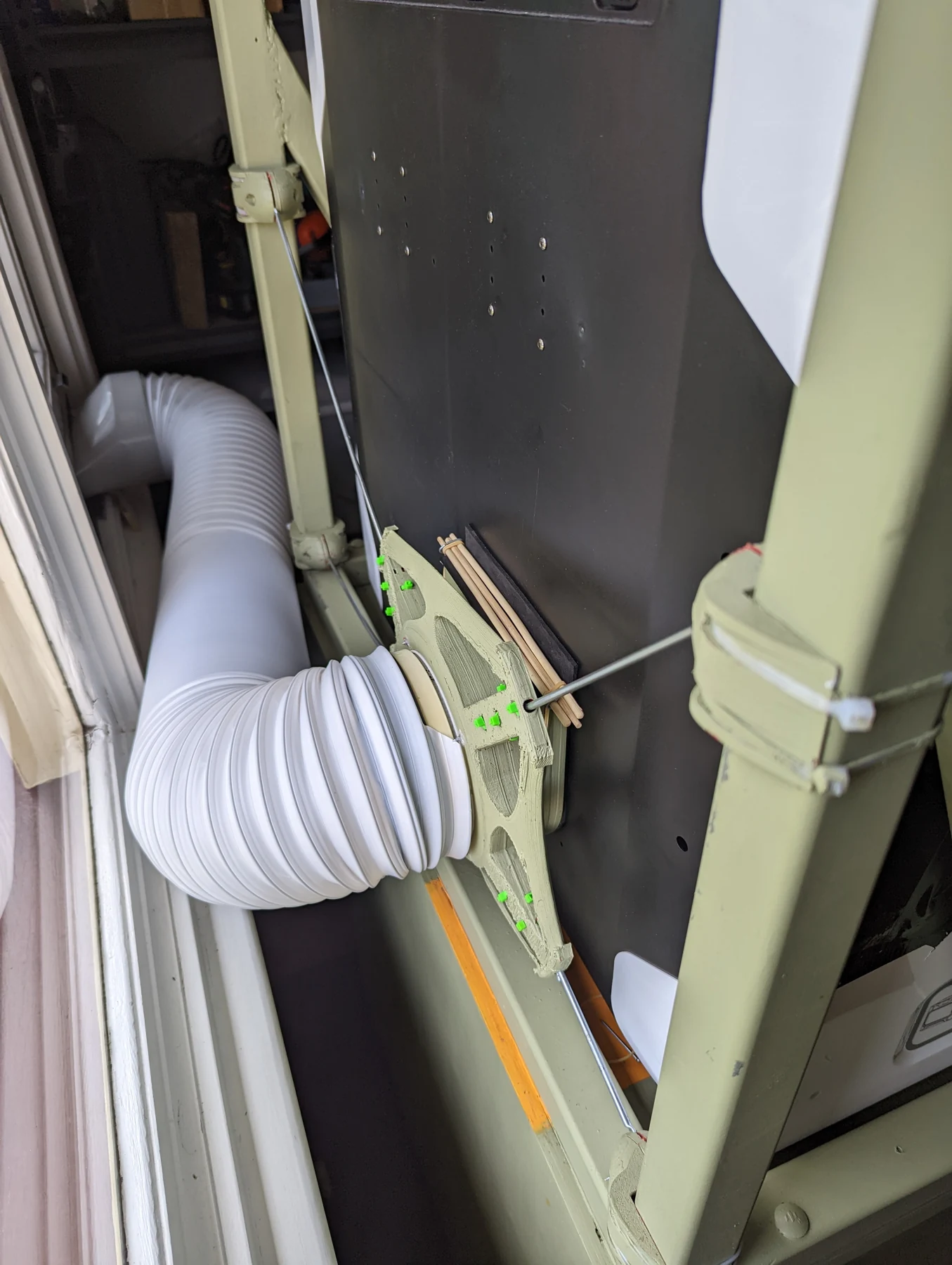

Custom rear connection and flexible duct routing — view 1 — Custom rear connection and flexible duct routing

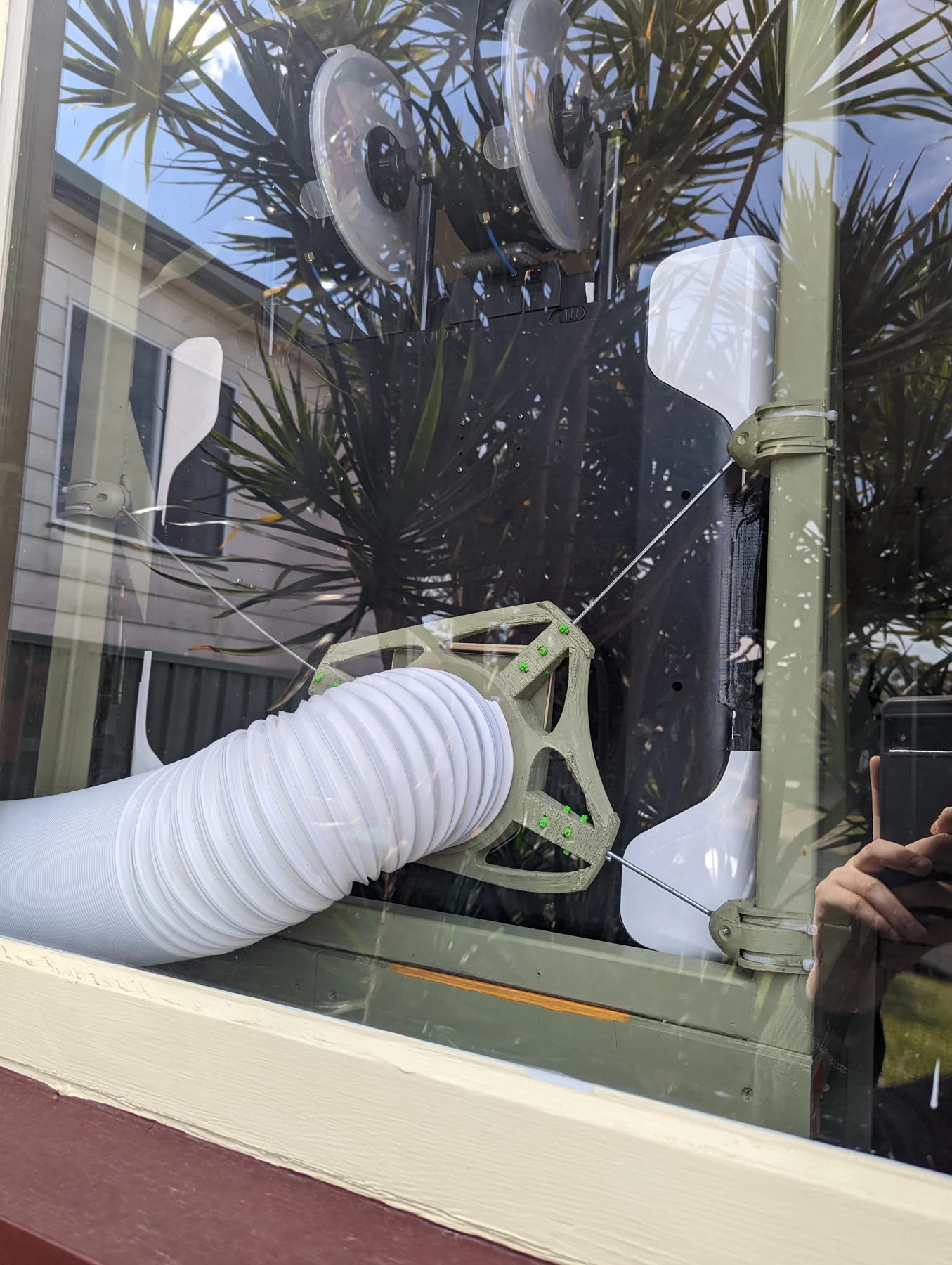

Custom rear connection and flexible duct routing — view 2 — Custom rear connection and flexible duct routing

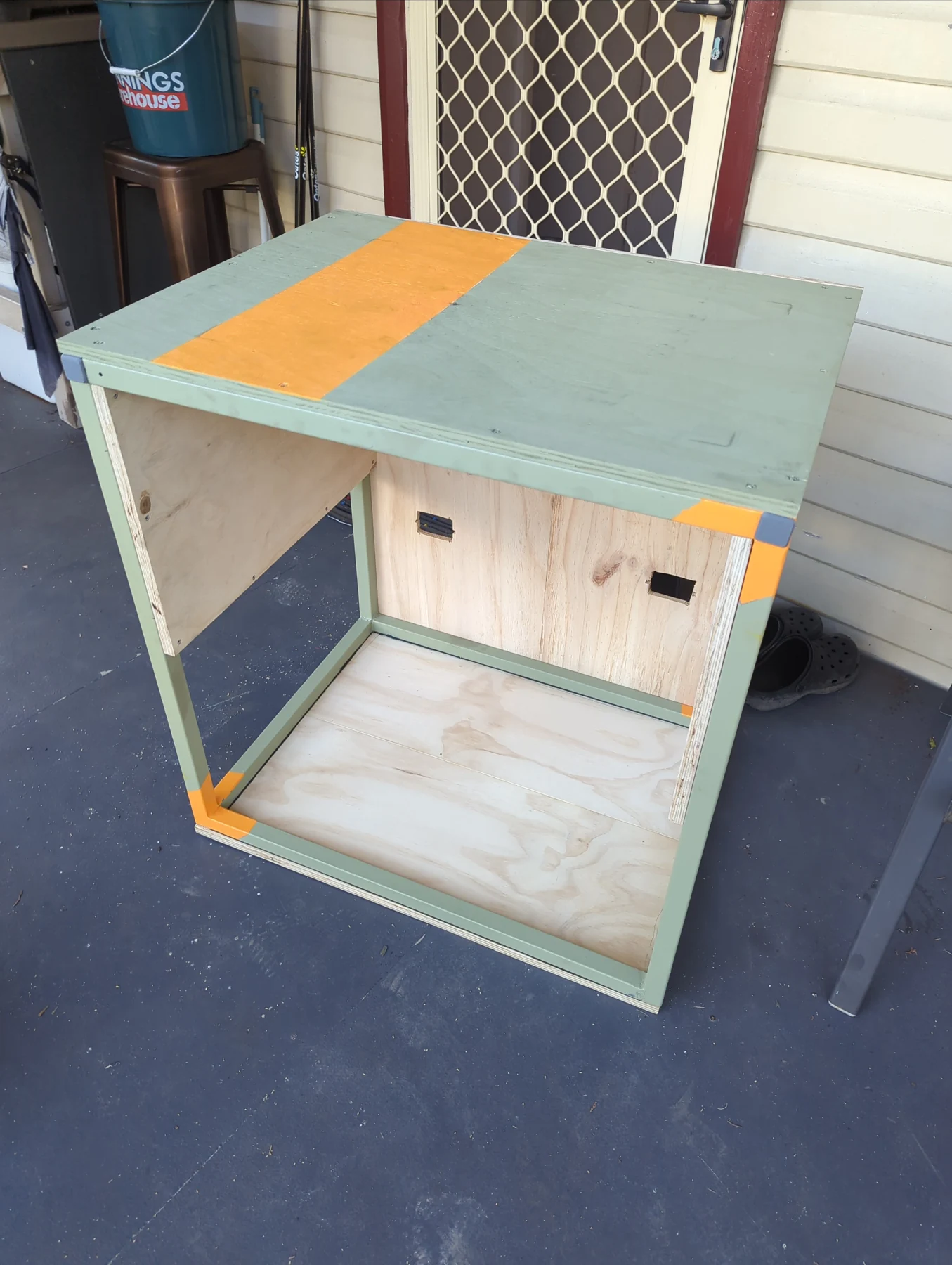

Cabinet during construction — view 1 — Cabinet during construction

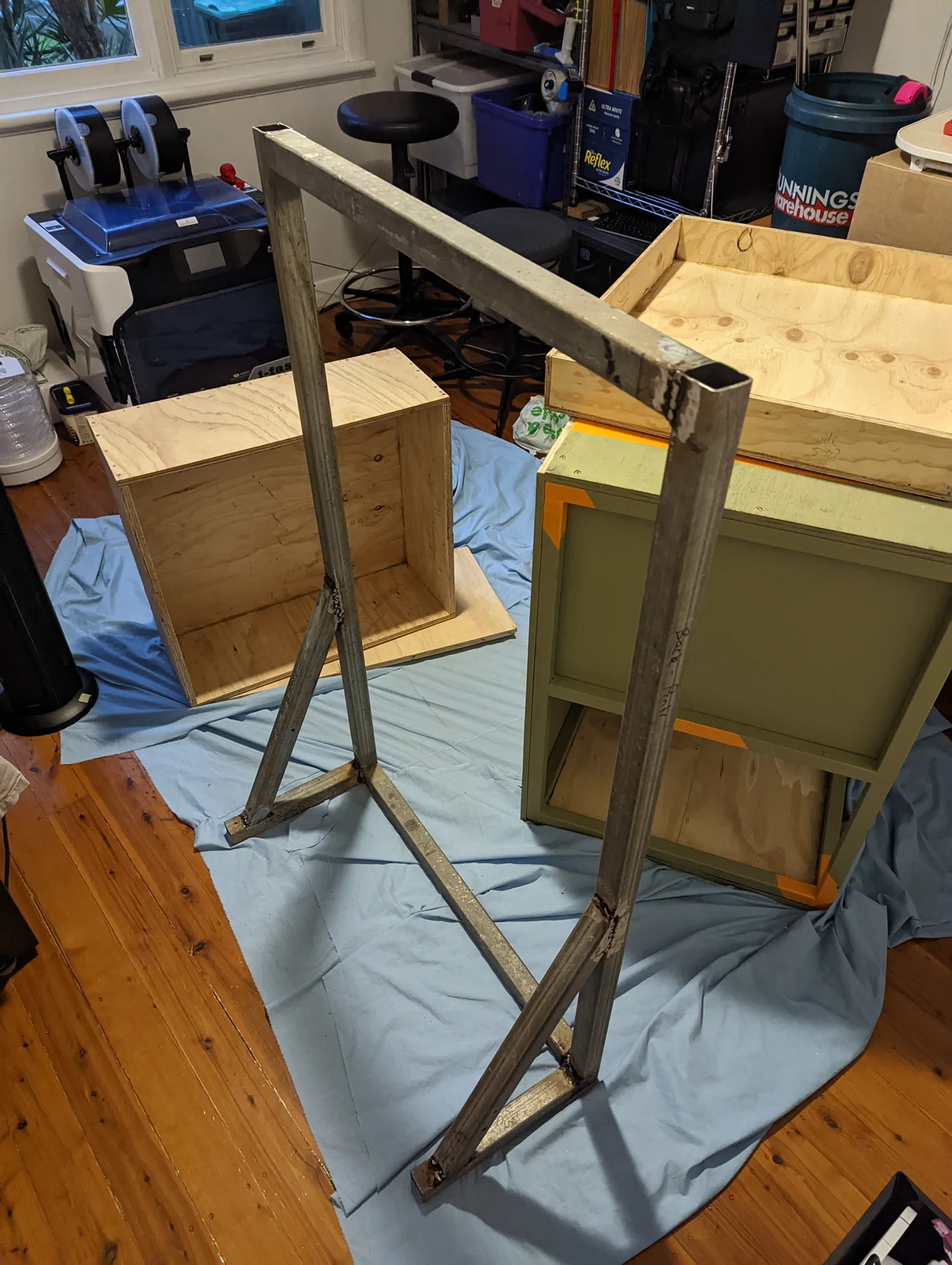

Cabinet during construction — view 2 — Cabinet during construction

Models

The three printed interfaces, shown on their own — the cabinet and duct around them are not modelled.

The vent outlet adapter in three dimensions, viewed from above one corner — Vent outlet adapter — the interface between the printer’s outlet fan and the duct.

The vent positioning mount in three dimensions, viewed from above one corner — Vent positioning mount — the cross-braced frame that holds the duct in place.
