Filament dehydrator

Adapting an off-the-shelf food dehydrator into a filament dryer you can print from. The initial multi-spool design was scaled down to a single spool for simplicity and to accommodate the dehydrator’s limited capacity revealed in testing.

Concept development · PETG fabrication · Design adaptation

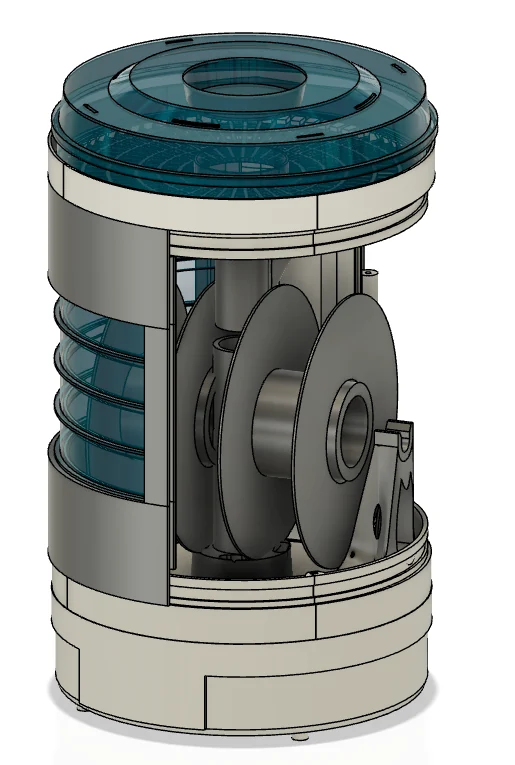

Early conceptual design

What I did

Designed and fabricated PETG parts for the off-the-shelf dehydrator, including an internal turntable and filament outlet.
Integrated a digital hygrometer so the enclosure conditions could be observed.
Arranged the spool support and feed-through so filament could be drawn from inside the enclosure during printing.

Design

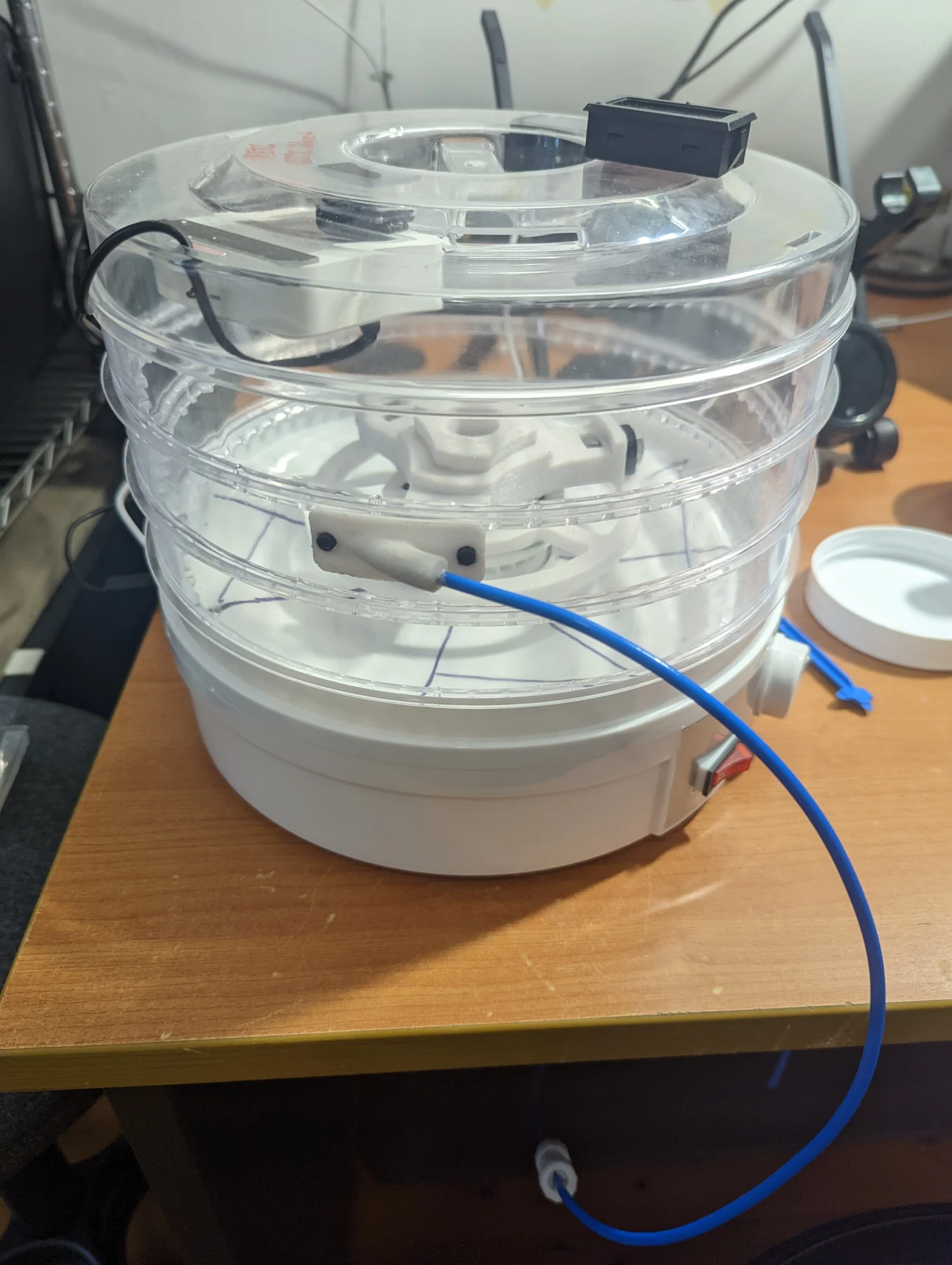

Assembled dehydrator with a blue filament feed tube — Feed-through arrangement on the adapted appliance

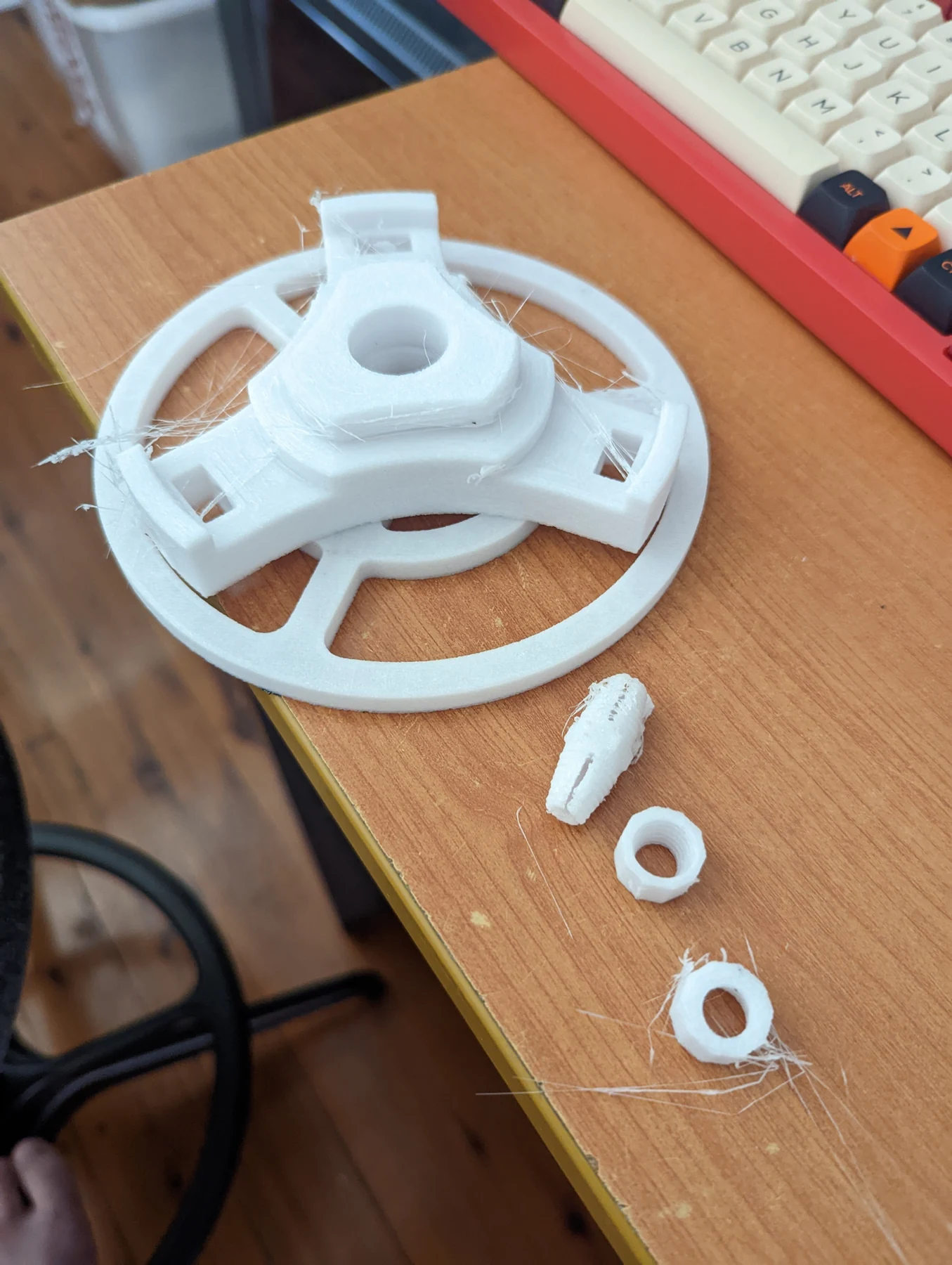

Fabricated turntable and small adapter components — PETG turntable and supporting parts before assembly

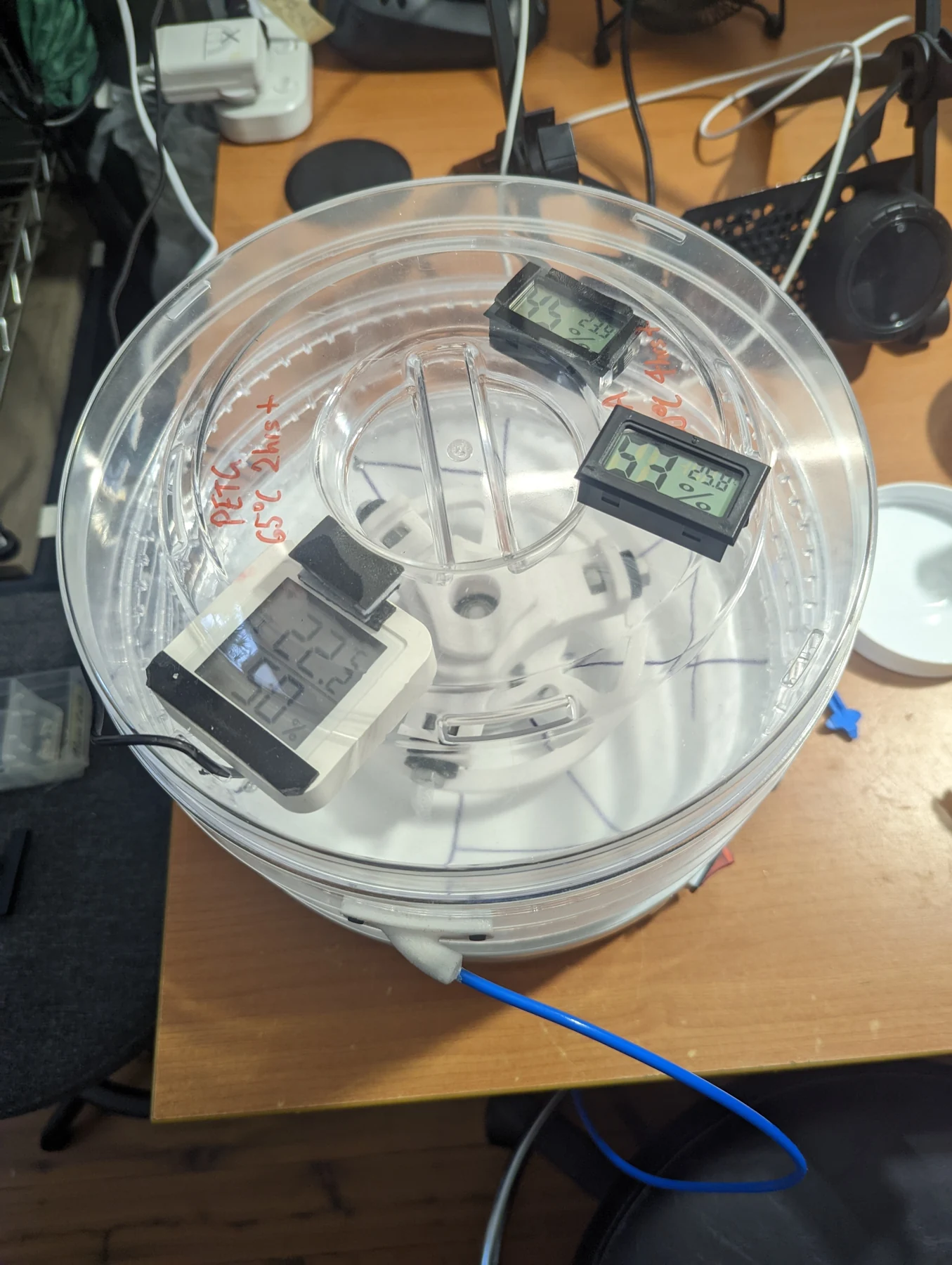

Turntable and digital hygrometer inside the dehydrator — Internal spool support and hygrometer

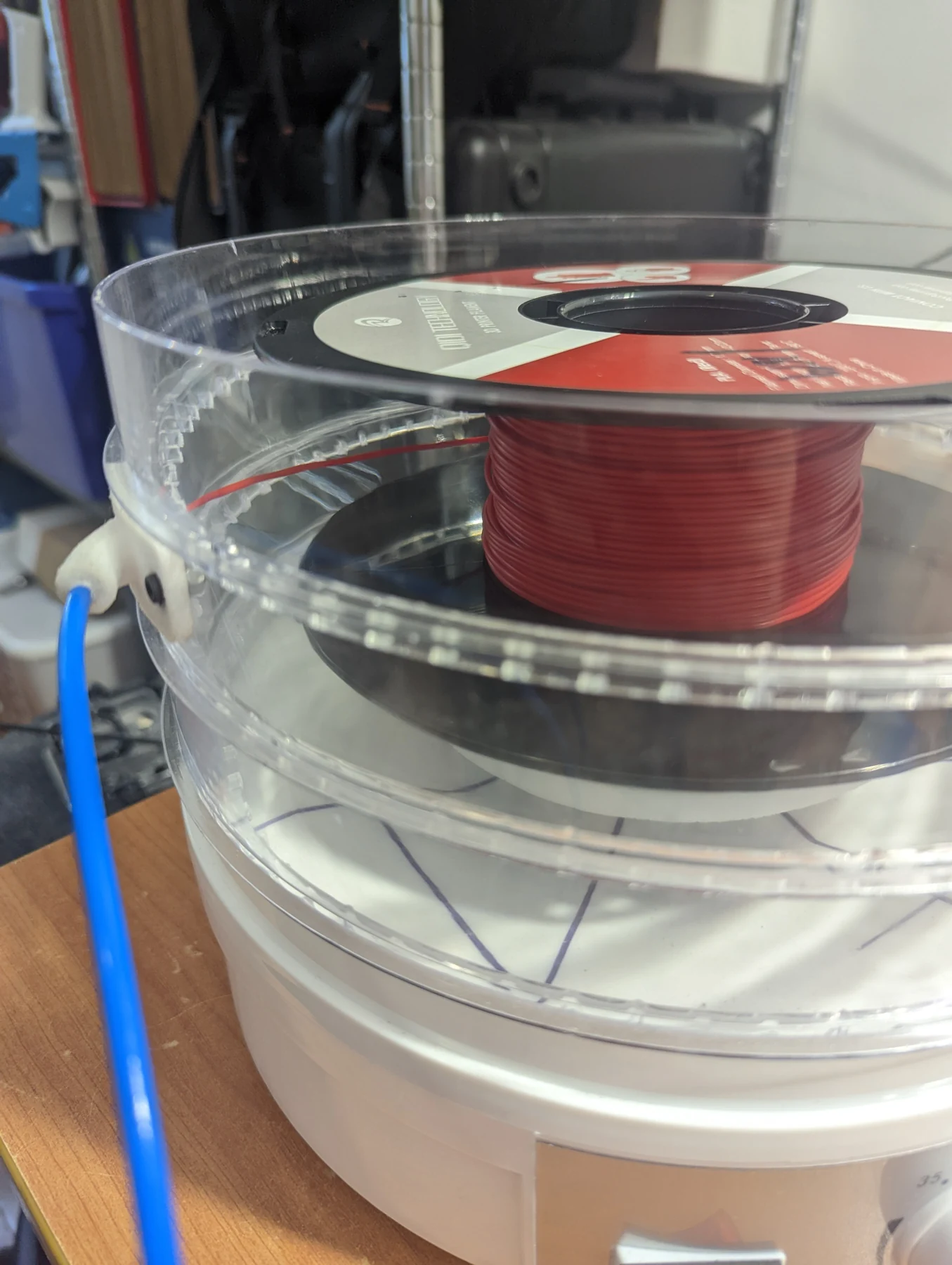

Filament spool loaded inside the adapted dehydrator — A spool loaded in the built version

Models

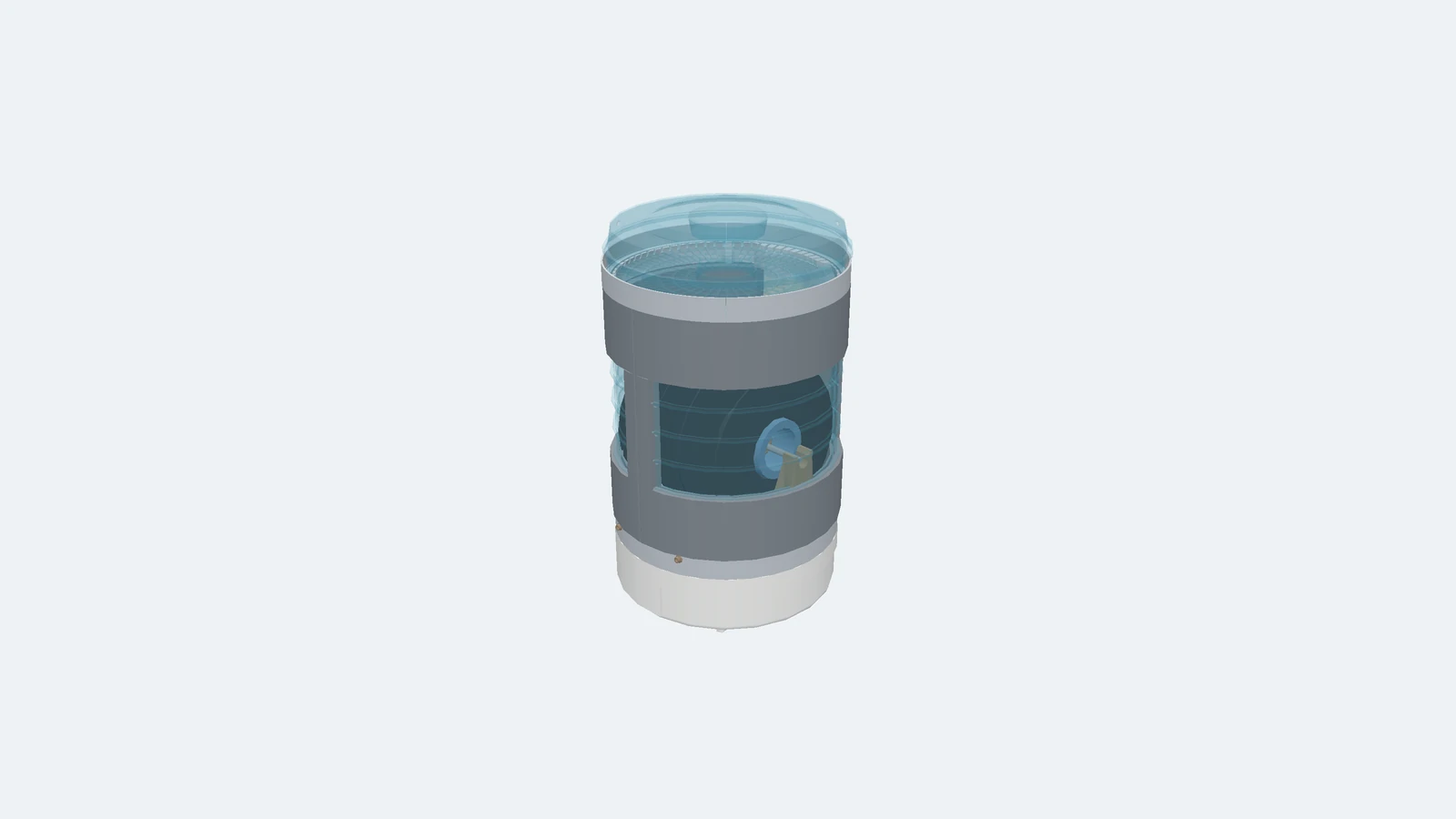

The conceptual vertical dehydrator in three dimensions, viewed from above one corner

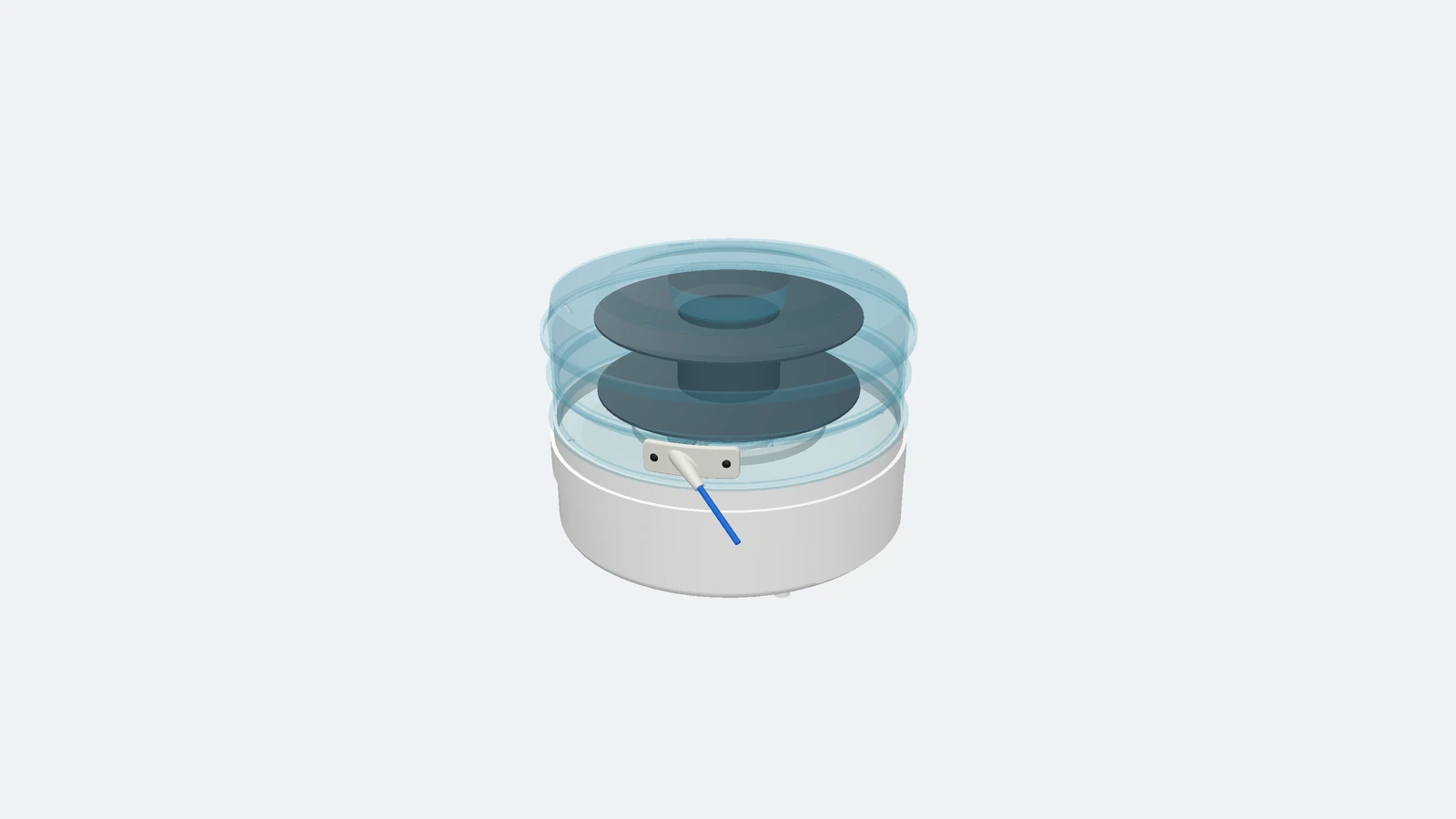

The dehydrator final build in three dimensions, viewed from above one corner
