Agricultural machinery refurbishment

Produce component fabrication drawings based on supplied specifications for a harvester bearing block and pulley-and-bracket assembly.

AutoCAD · AS 1100 · Section views · Fits & tolerances

What I did

  • Prepared three component drawings and an assembly drawing for each assessment, using third-angle views, sections, dimensions and parts lists.
  • Documented materials, surface finishes and limits of fit so the component drawings could be read together as a complete assembly set.

Bearing block drawing details

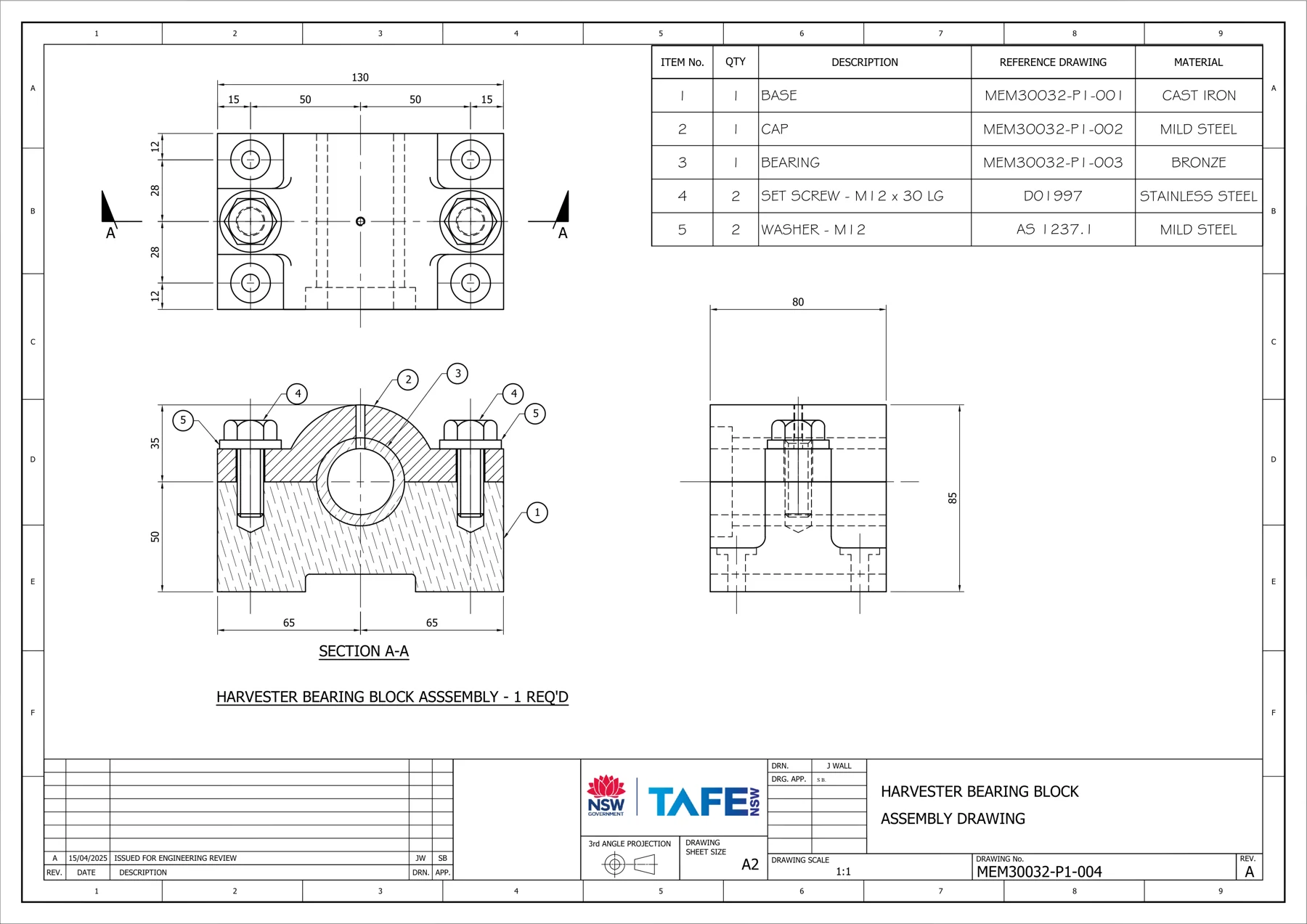

Sectioned harvester bearing block assembly drawing with parts list
Assembly: sectioned bearing block with parts list

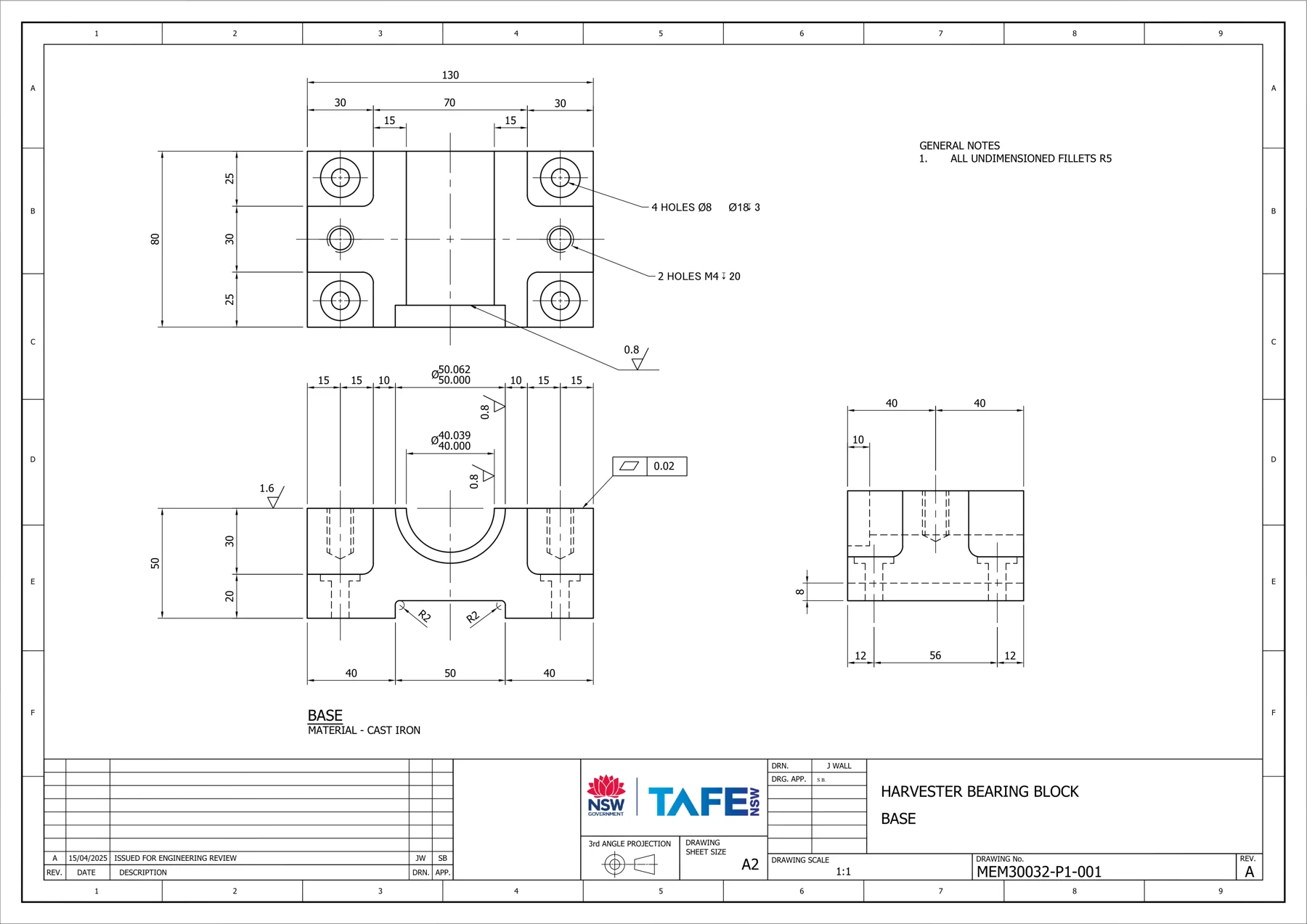

Harvester bearing block base drawing
Base: dimensioned views, stepped bore and surface-finish requirements

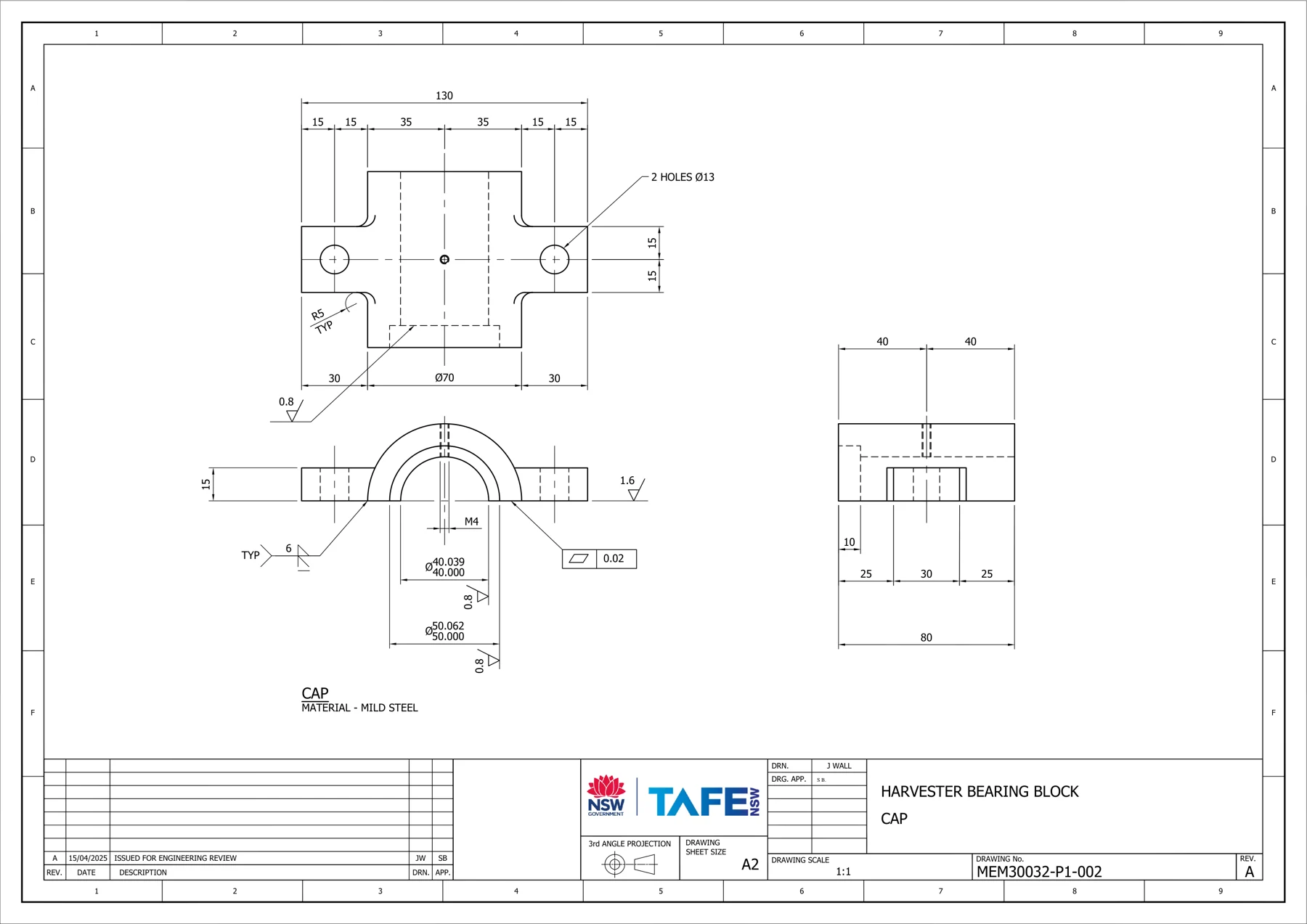

Harvester bearing block cap drawing
Cap: corresponding mating geometry and fastening details

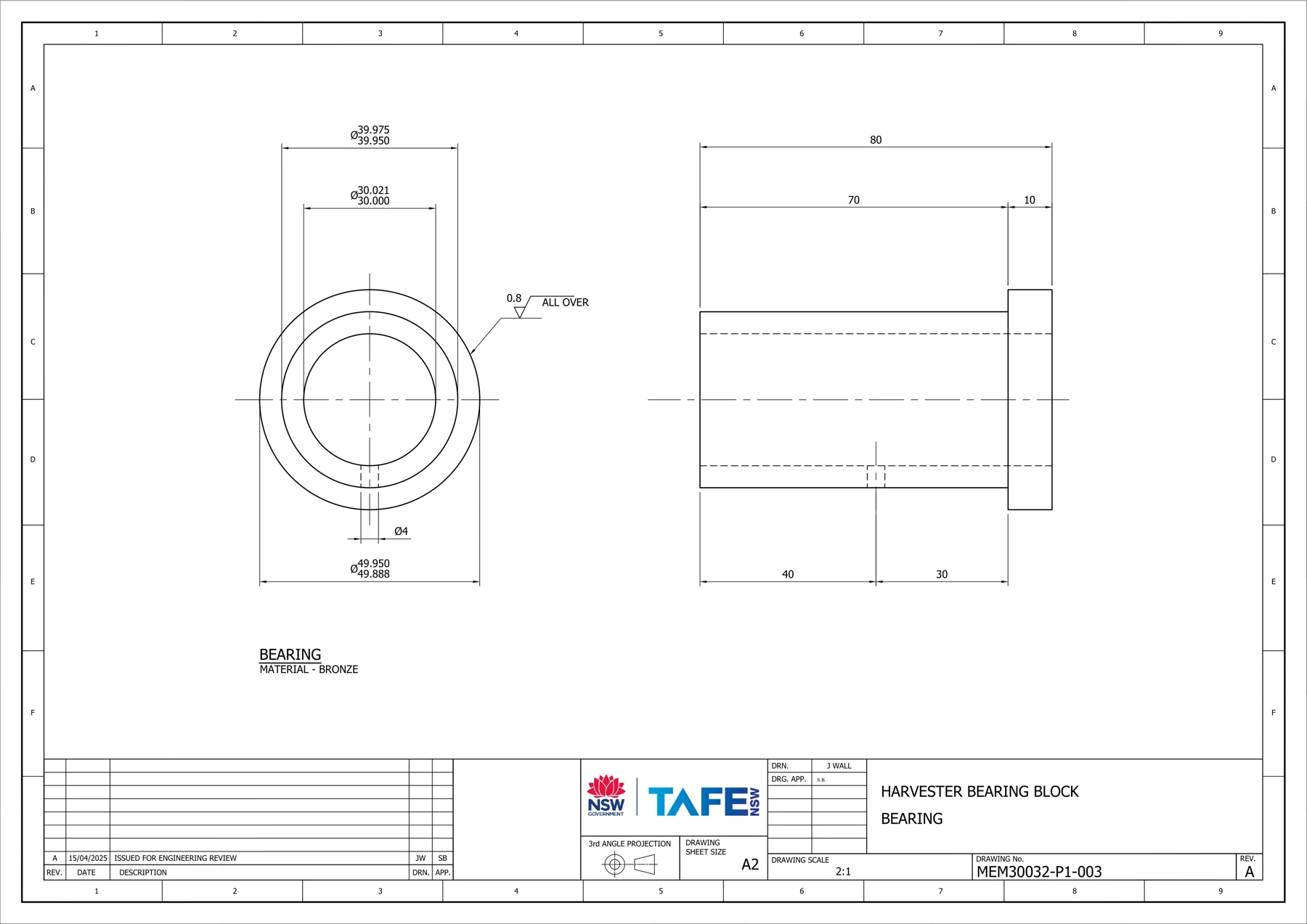

Bronze bearing drawing
Bearing: limits on internal and external diameters

View bearing block drawings — 4 sheets

Pulley & bracket drawing details

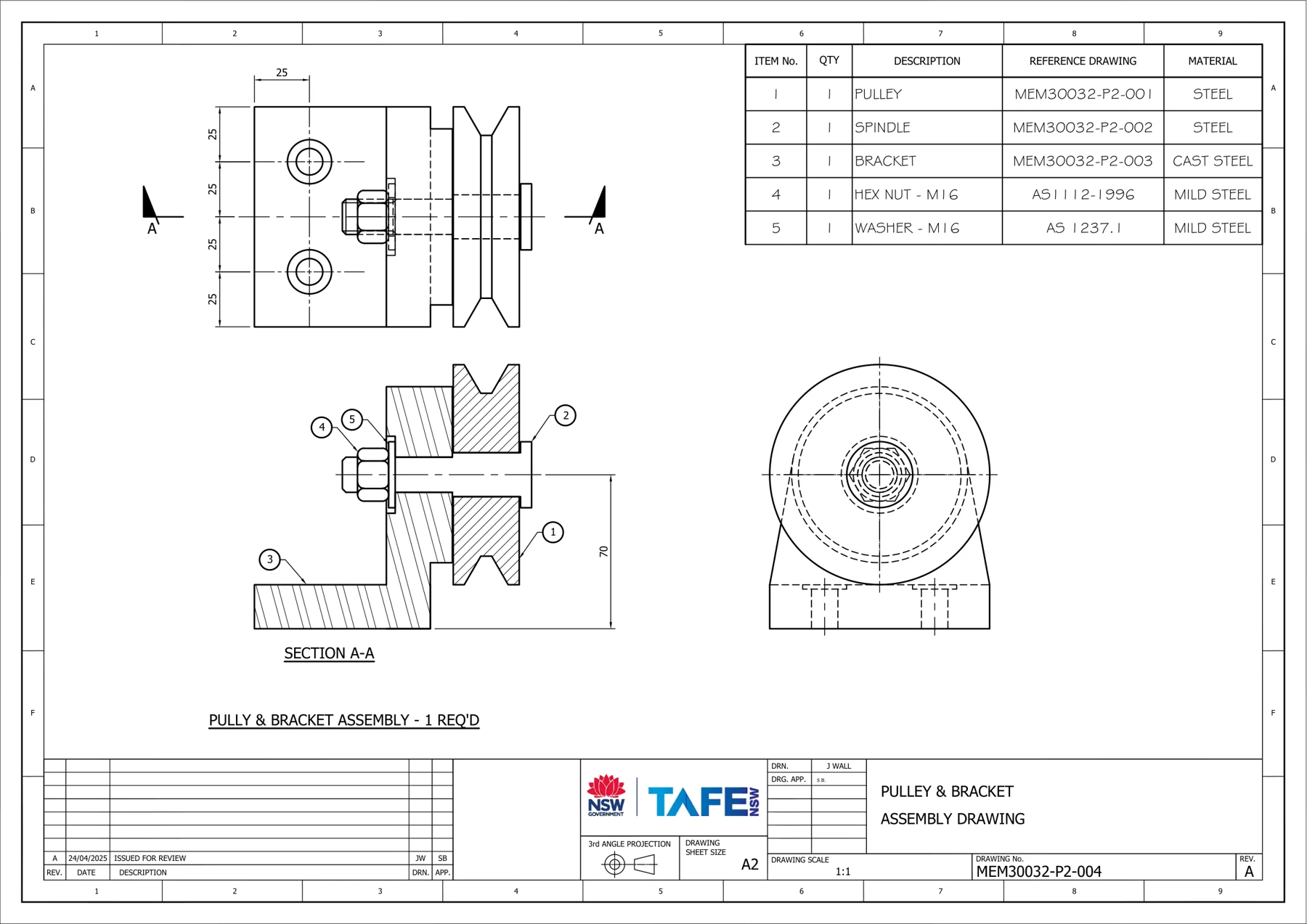

Pulley and bracket sectioned assembly drawing
Assembly: sectioned pulley and bracket with five-item parts list

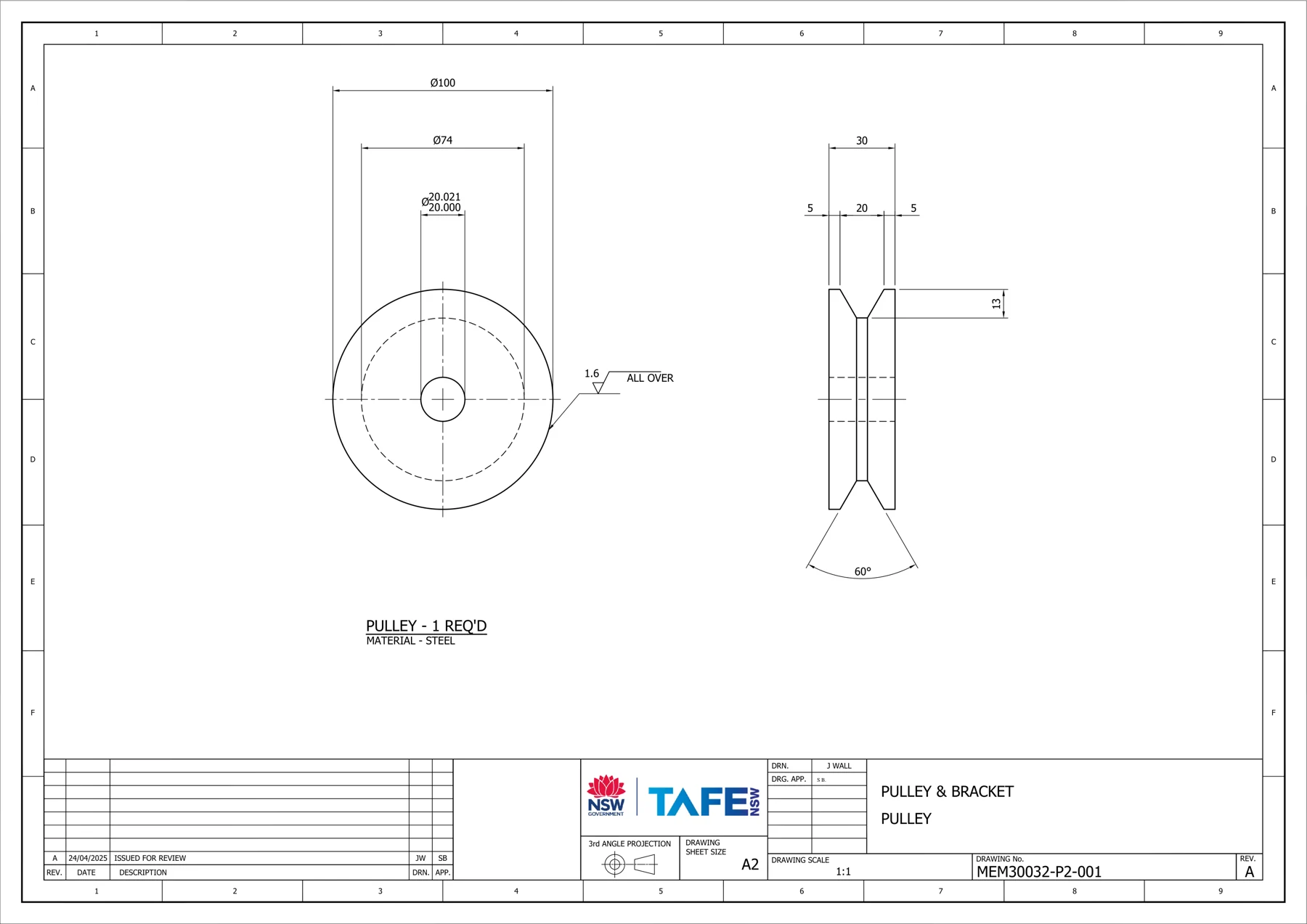

Pulley drawing with bore limits
Pulley: groove profile and bore limits

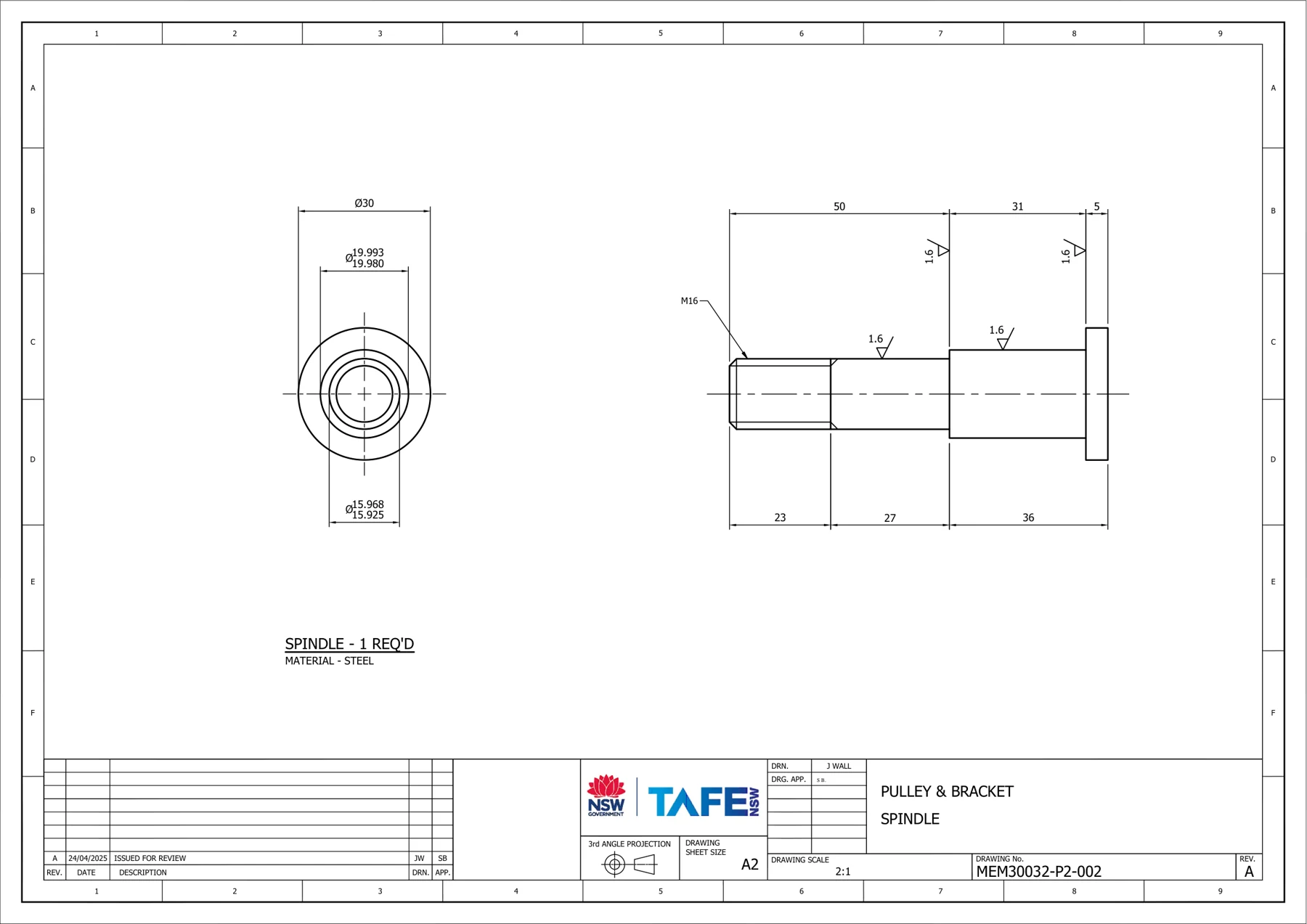

Spindle drawing showing mating diameter limits
Spindle: two mating diameters, threaded end and surface finishes

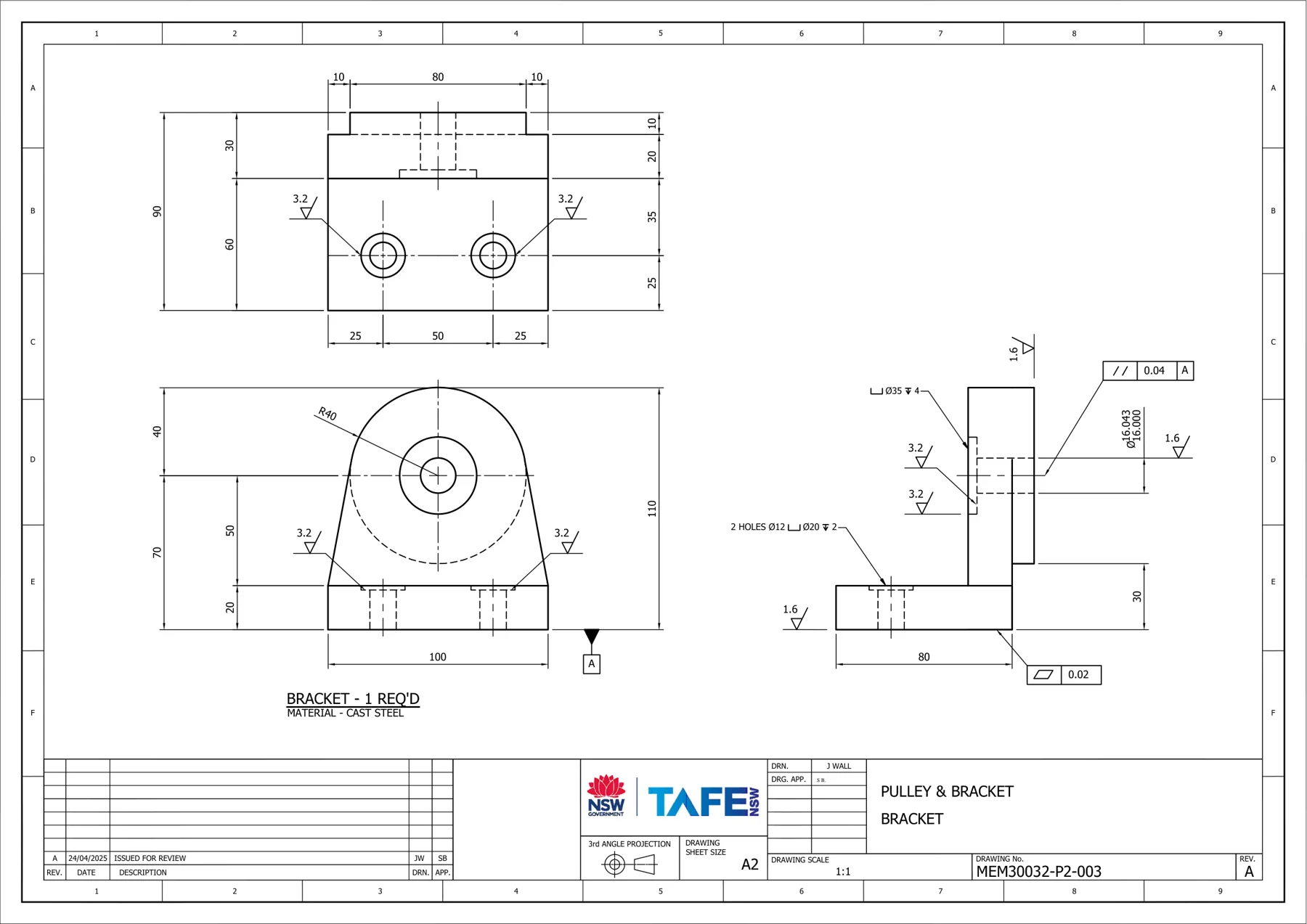

Bracket drawing with datum and geometric tolerances
Bracket: mounting features, datum, flatness and parallelism

View pulley and bracket drawings — 4 sheets
