Belt tensioner

Model a belt tensioner assembly and produce component and assembly drawings, including sections, fits, surface finishes and an exploded assembly.

Inventor · Section views & hatching · Fits & tolerances · Exploded assemblies

What I did

  • Modelled all parts and assembled to produce four drawing sheets with orthogonal and section views to communicate internal geometry, fits and surface finishes. Exploded isometric tied to a ten-item detailed parts list

Drawing

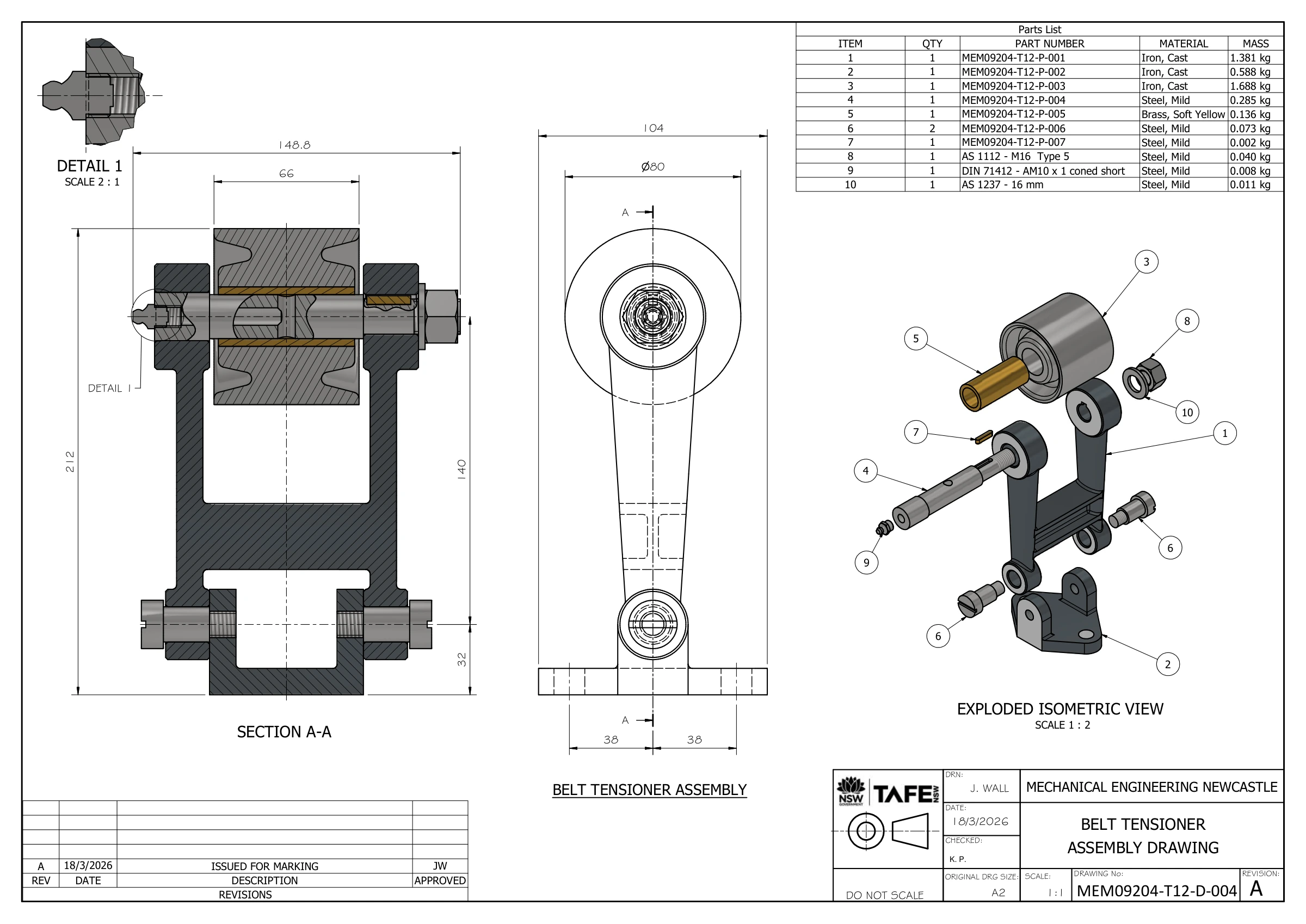

Assembly: section A-A, exploded isometric and ten-item parts list
Assembly: sectioned mechanism, exploded isometric and ten-item parts list

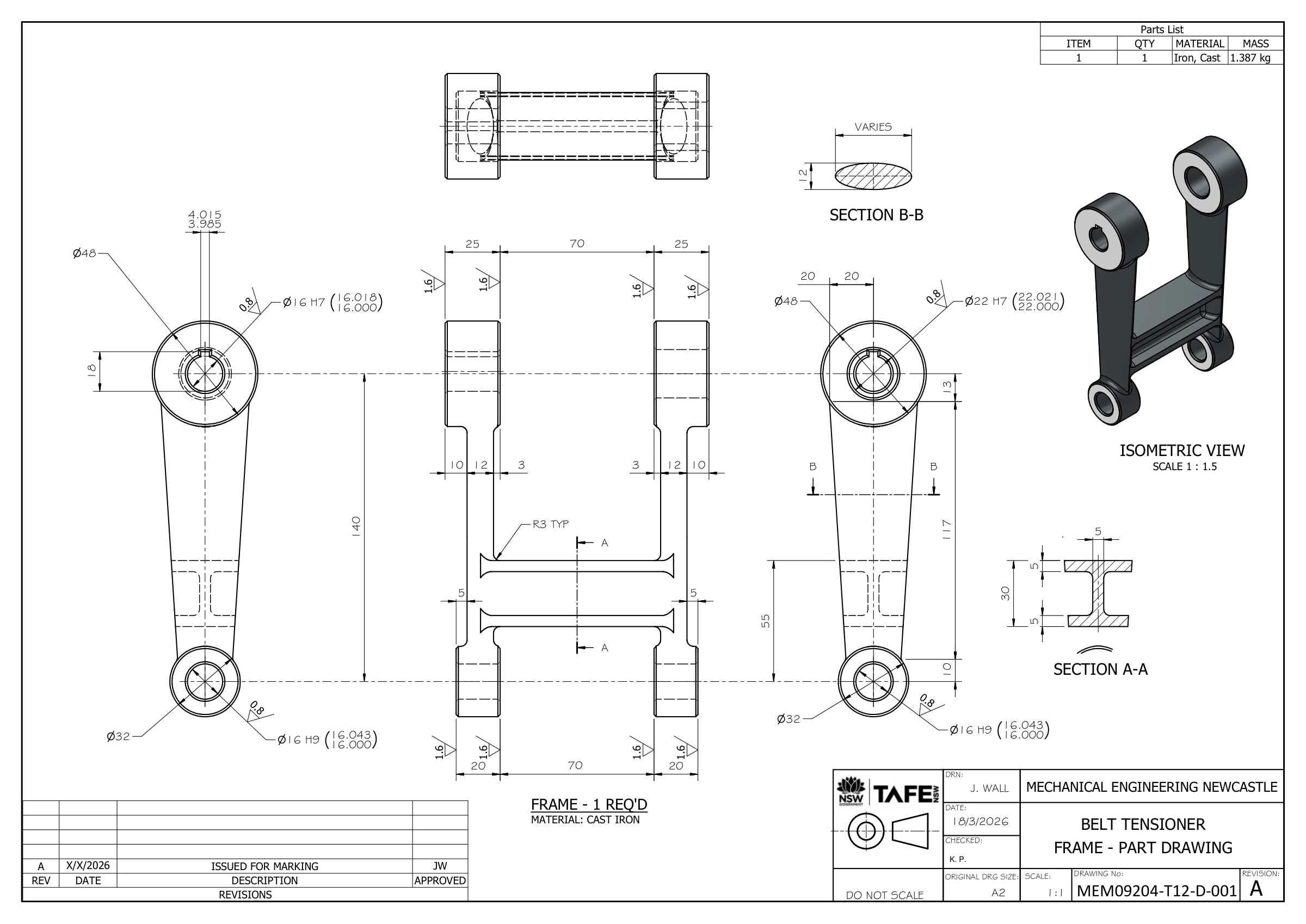

Frame: sectioned profiles, bore fits and surface finishes
Frame: sectioned profiles, bore fits and surface-finish details

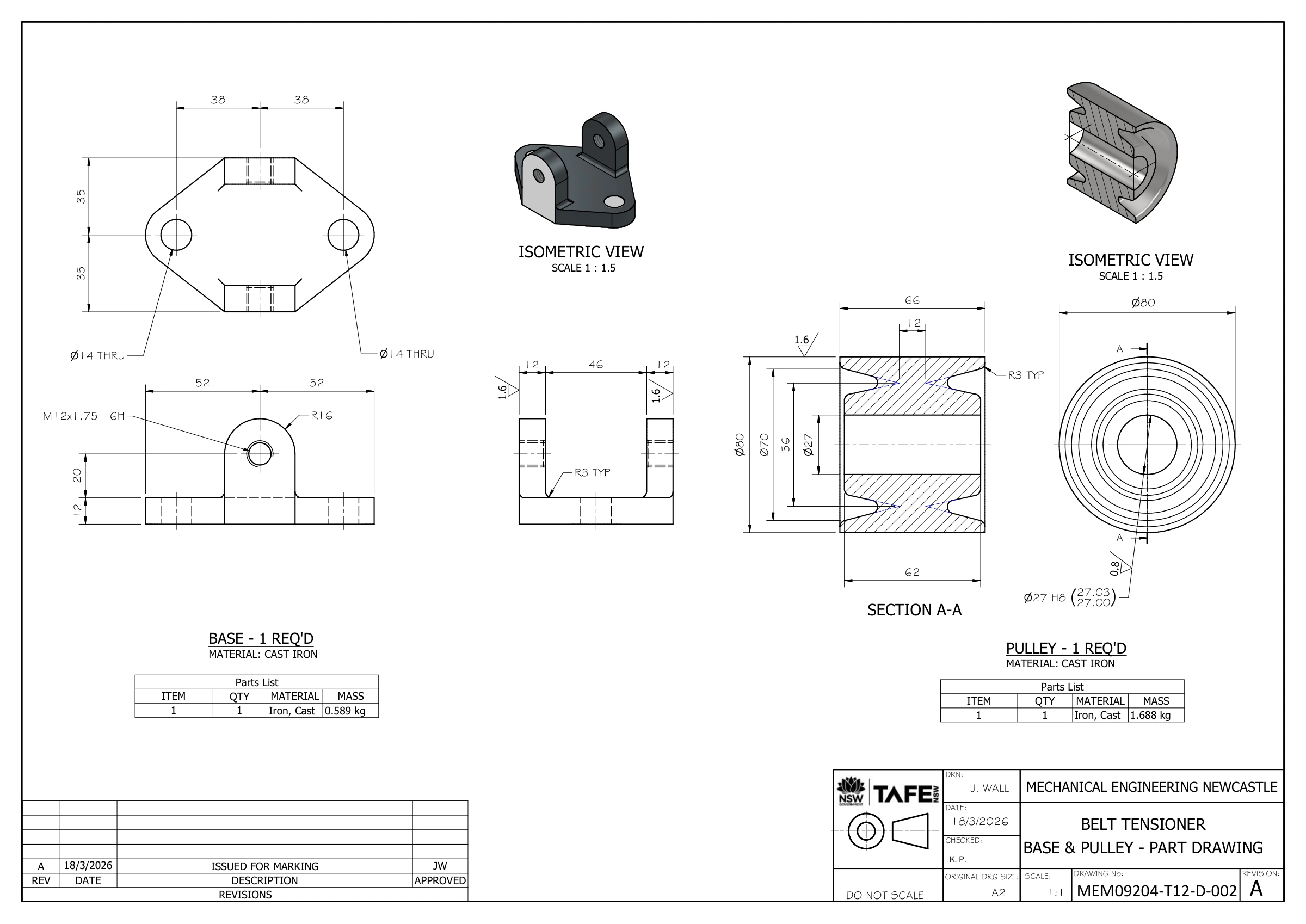

Base and pulley: mounting geometry and sectioned pulley detail
Base and pulley: mounting features and sectioned pulley detail

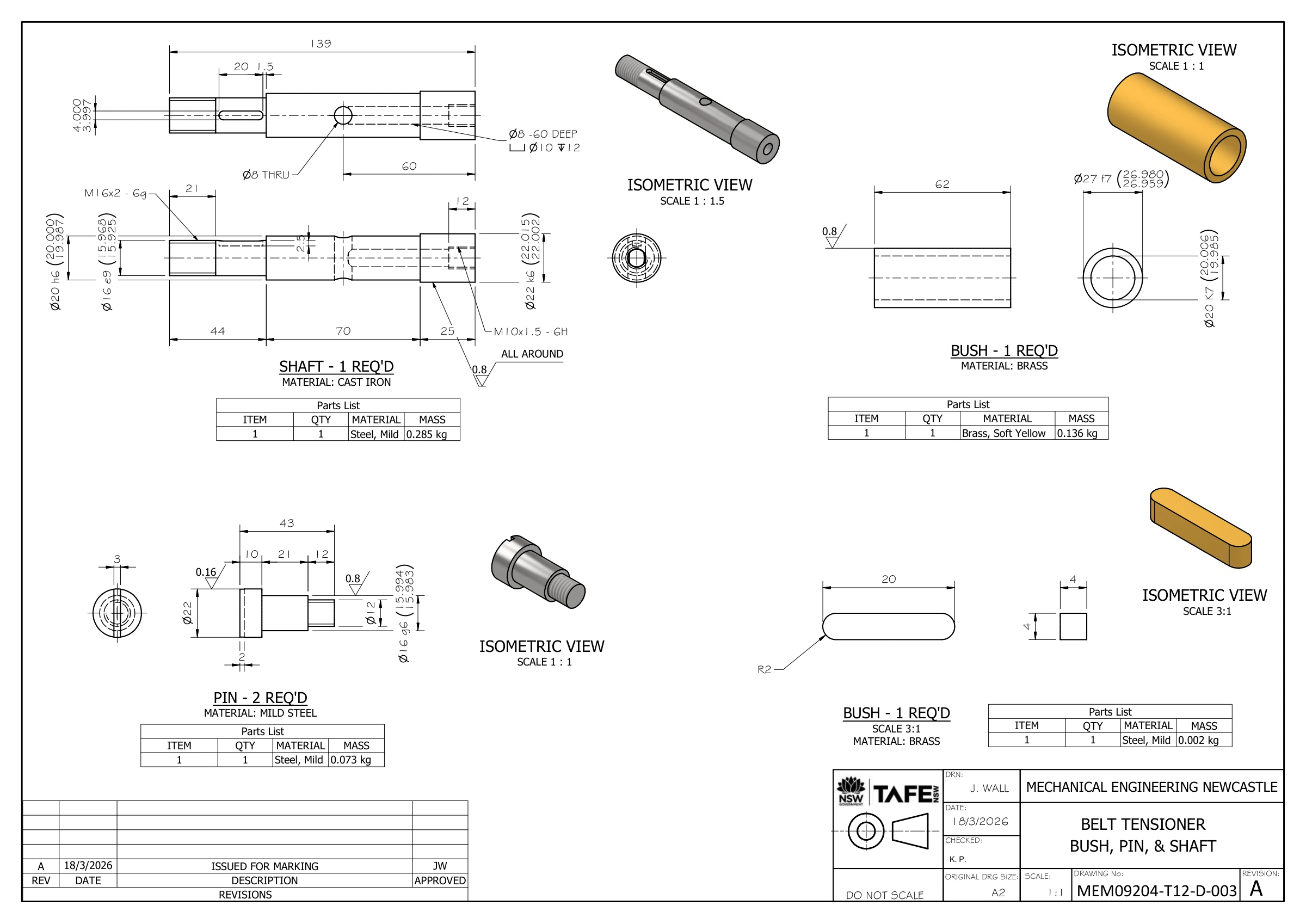

Shaft, bush, pin and key details
Shaft, bush, pin and key: component dimensions and fits

View drawings — PDF, 4 sheets

Model

The belt tensioner assembly in three dimensions, viewed from above one corner
