Parts for things that came with no drawings: each measured from photographs of the original, then modelled, printed, and fitted.

2022–2023 · Measured from photographs · Replacement pulley · Snap-fit adapter

The desk’s counterbalance cable pulley had a non-standard spiral groove that wound outward at a growing radius. Took its geometry from photographs, modelled a replacement, printed it, and reassembled the desk.

Original light-coloured counterbalance cable pulley beside the dark fabricated replacement — Original (left) and fabricated (right)

Original and fabricated counterbalance cable pulleys

Reference images showing the non-standard pulley profile

Exploded assembly reference

Assembled desk in use

Model

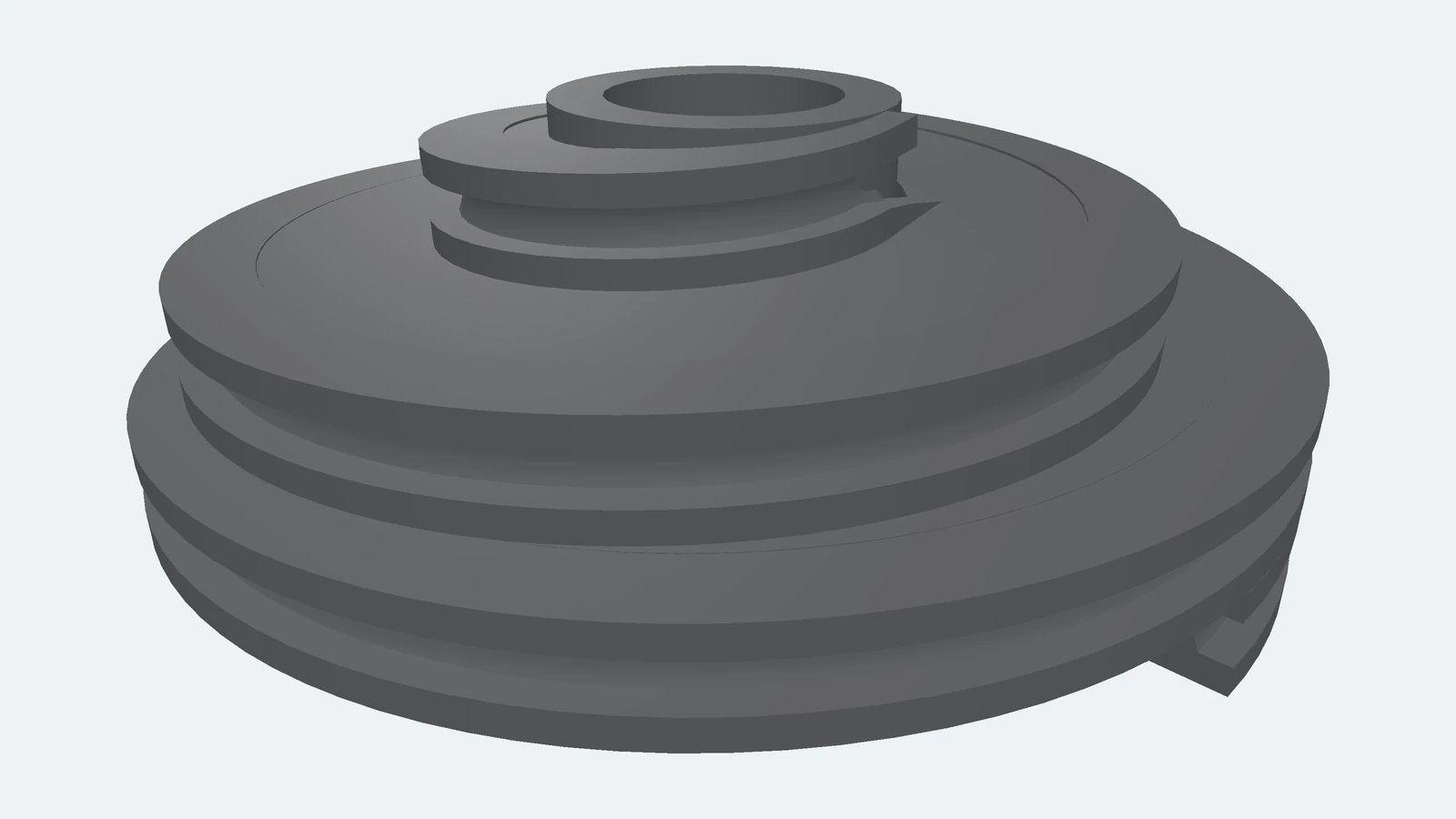

The replacement counterbalance cable pulley in three dimensions, viewed from above one side

An AMVR battery with a non-standard curved profile, mounted on the VIVE Deluxe Audio Strap (DAS). Photographed the battery against a measurement grid, took its curvature from the image, and designed a thin, hollow snap-on adapter to keep the added mass down.

AMVR battery and custom adapter fitted to the headset — The fabricated adapter fitted to the headset

Curved battery photographed against a measurement grid — Reference photograph used to capture the battery profile

Rear view of the battery adapter installed on the headset — Rear view of the assembled adapter and battery

Side view showing adapter clearance around the headset — Side view of the interface with the DAS

Model

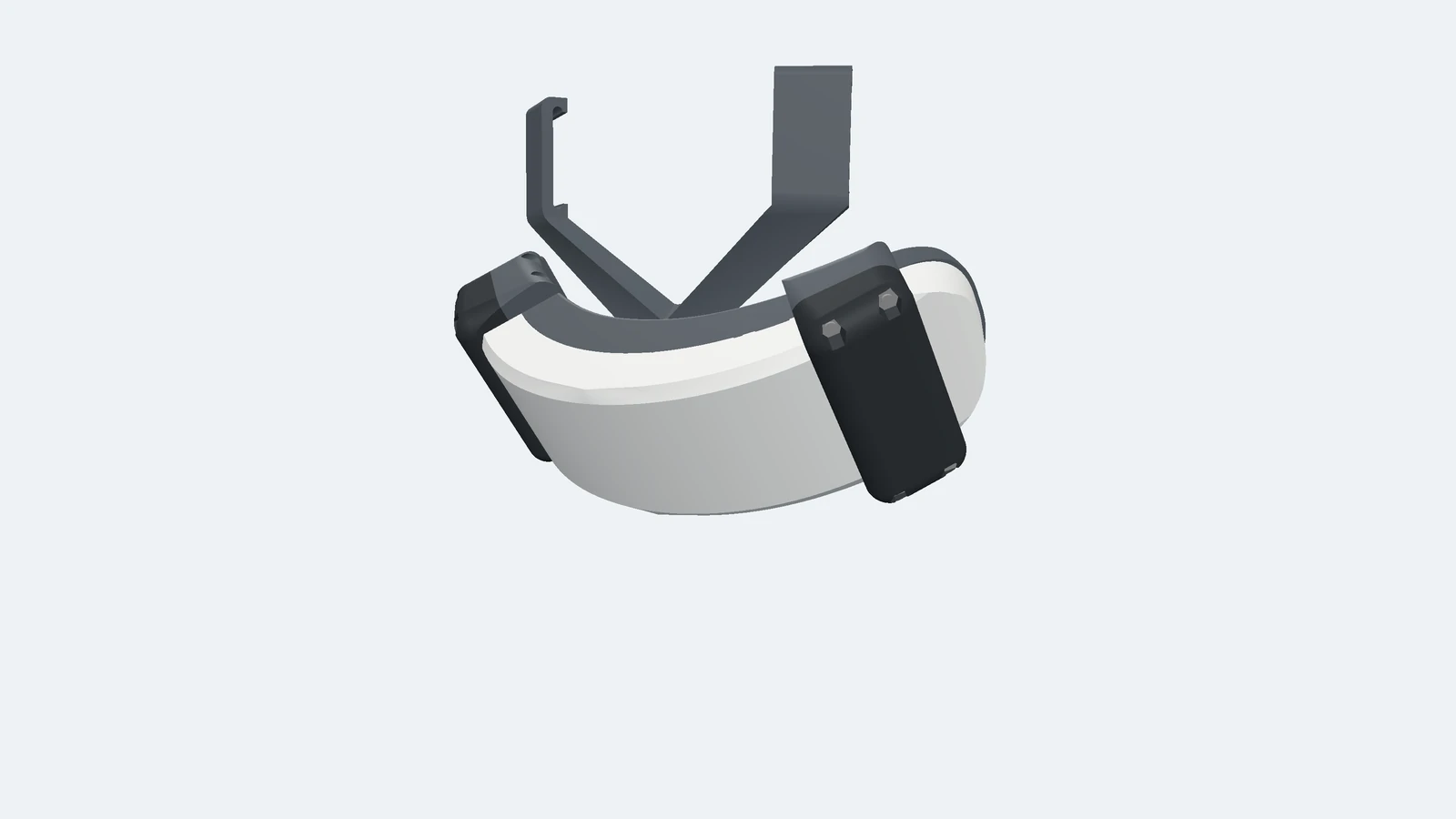

The battery adapter in three dimensions, seen from behind the battery
