Fabrication drawing sets

Two complete fabrication and assembly drawing sets drawn in Inventor: a belt tensioner with non-standard internal geometry, and a ball towing coupling detailed enough to be fabricated and assembled without further information.

2026 · Inventor · Section and exploded views · Fits & tolerances · Parts lists

Drawing

Belt tensioner

Assembly: section A-A, exploded isometric, and ten-item parts list — Assembly: sectioned mechanism, exploded isometric, and ten-item parts list

Frame: sectioned profiles, bore fits, and surface finishes — Frame: sectioned profiles, bore fits, and surface-finish details

Base and pulley: mounting geometry and sectioned pulley detail — Base and pulley: mounting features and sectioned pulley detail

Shaft, bush, pin, and key details — Shaft, bush, pin, and key: component dimensions and fits

View belt tensioner drawings — PDF, 4 sheets, 1.8 MB

Model

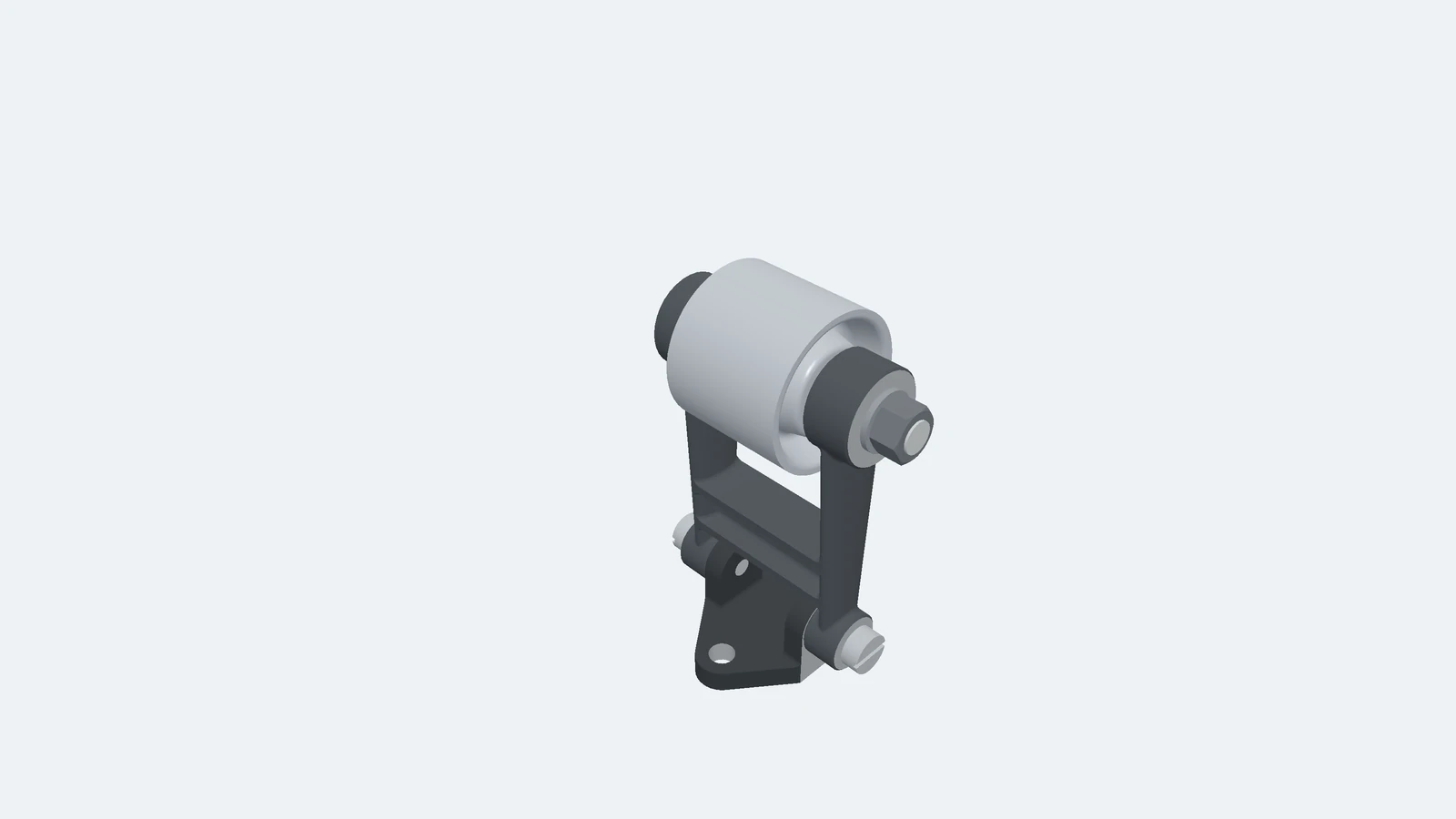

The belt tensioner assembly in three dimensions, viewed from above one corner

Ball towing coupling

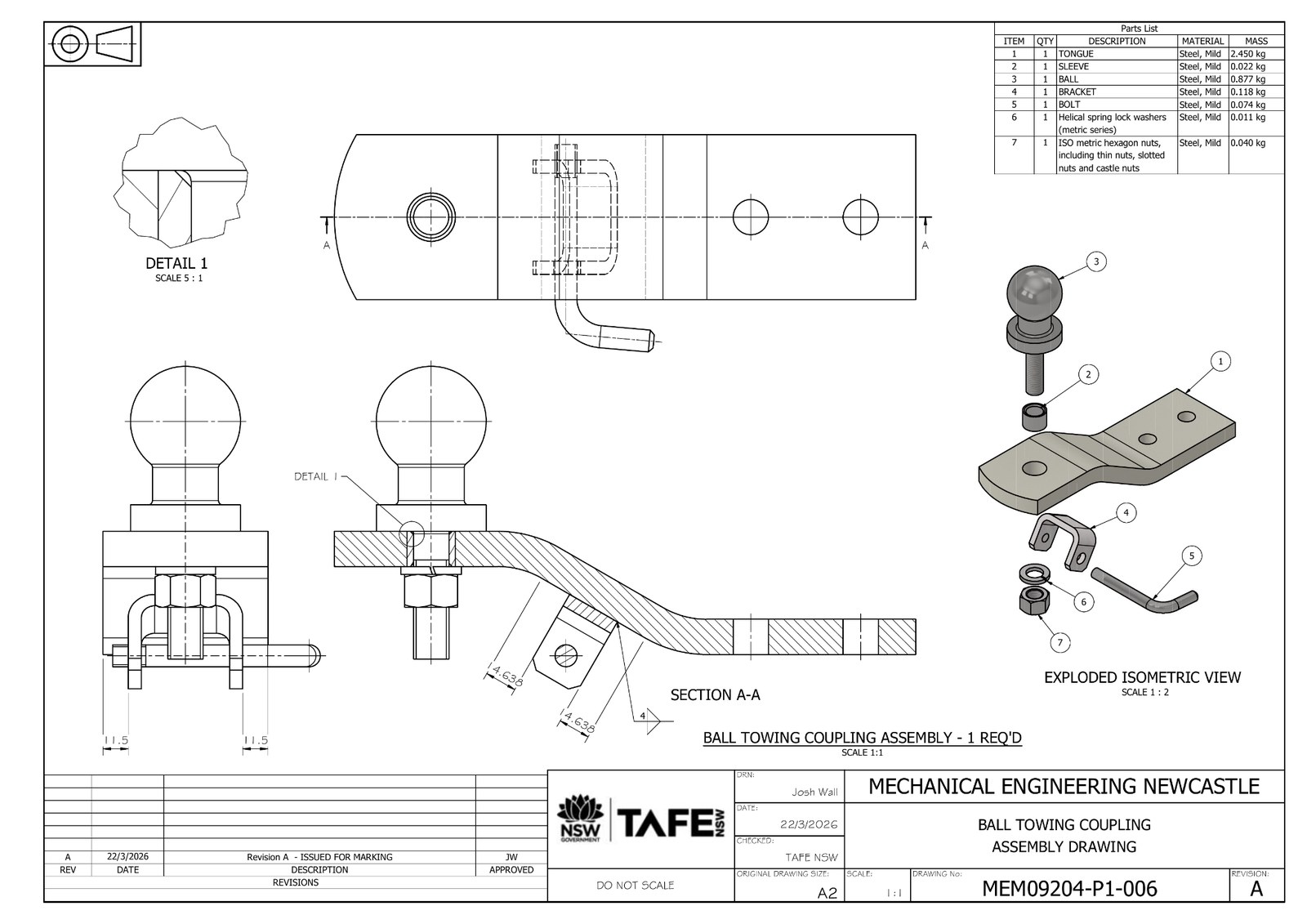

Ball towing coupling assembly drawing with section, exploded view, and parts list — Assembly: sectioned coupling, exploded view, and parts list

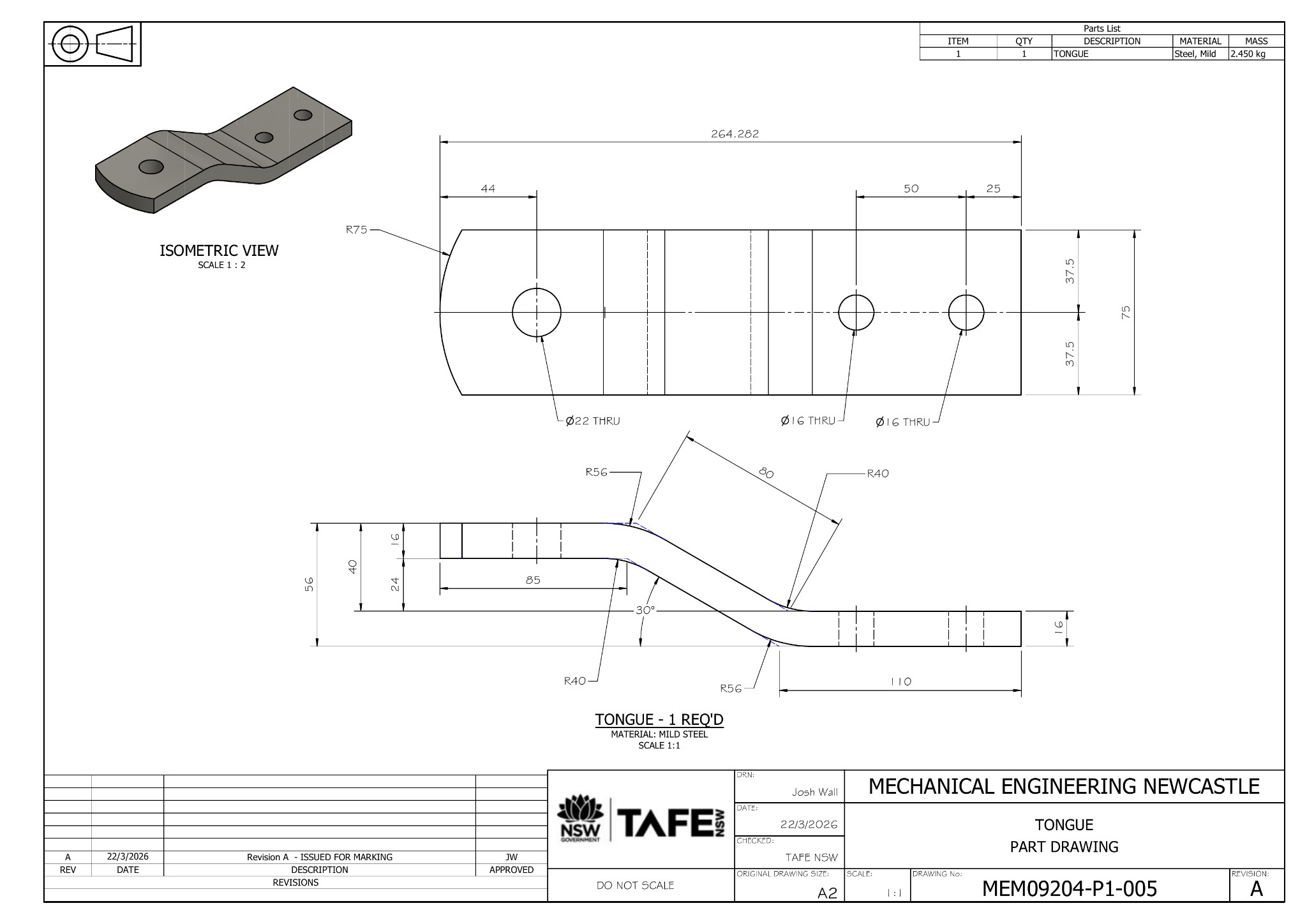

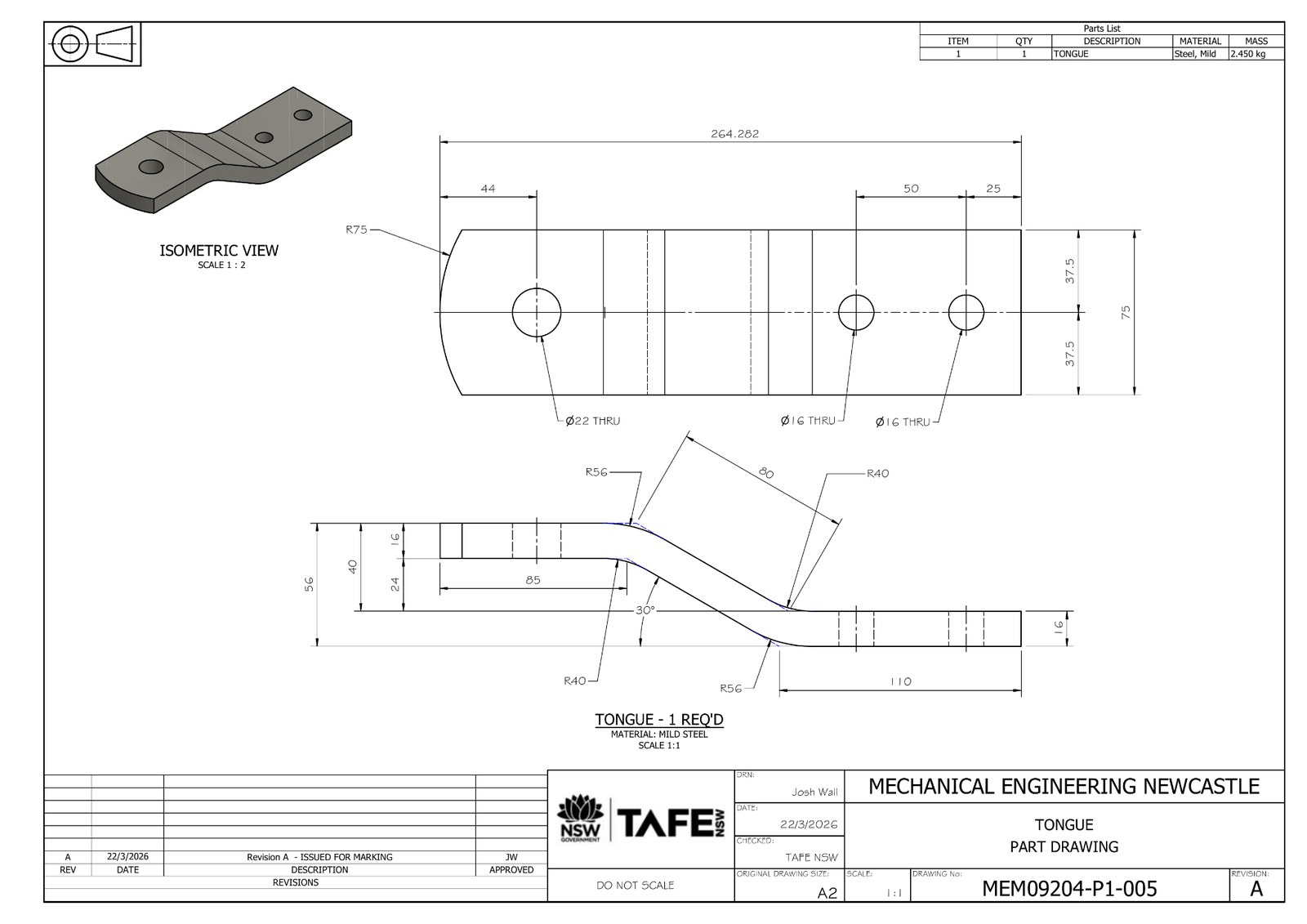

Dimensioned detail drawing of the towing coupling tongue — Tongue: dimensions, section, and fastener details

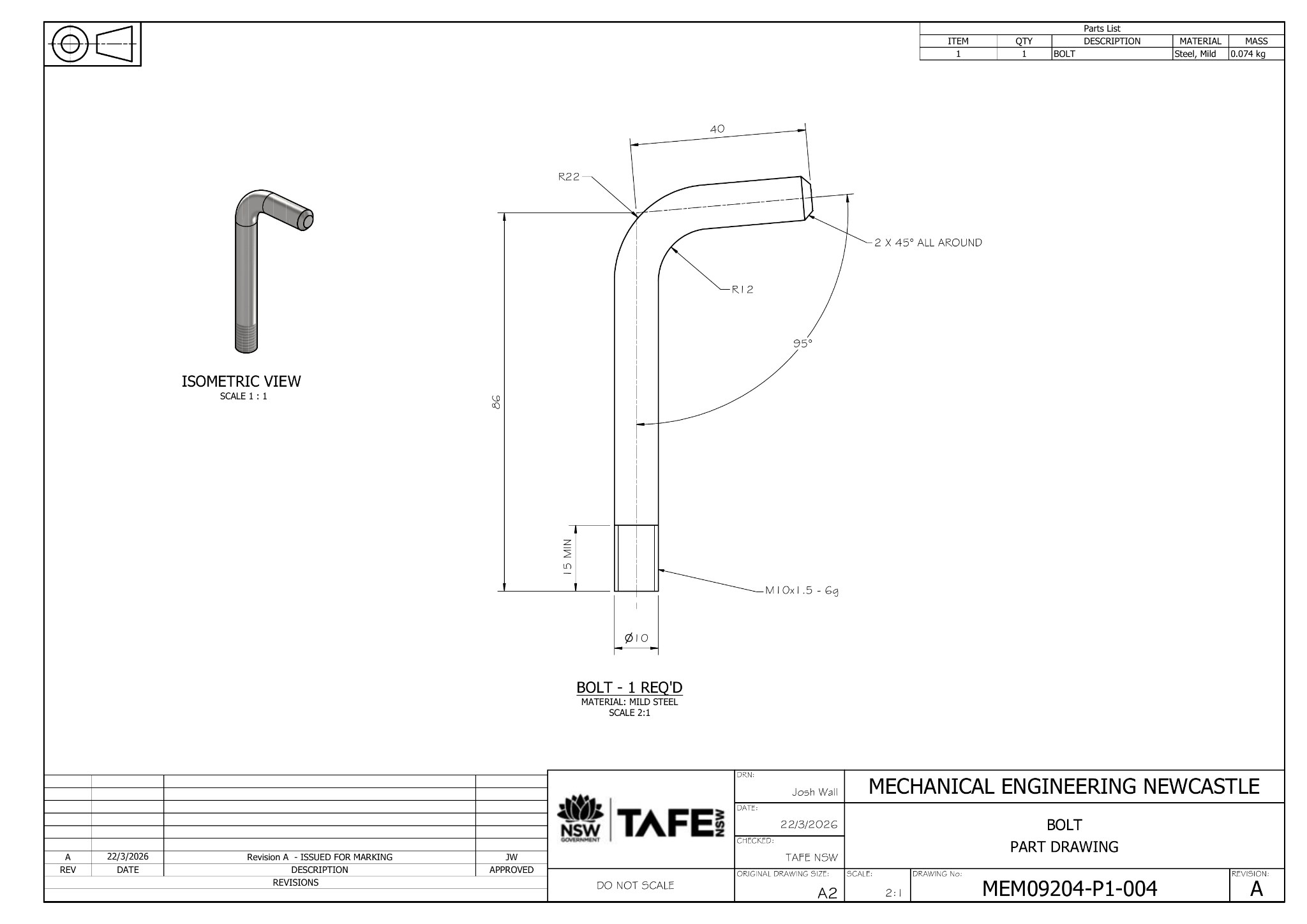

Dimensioned detail drawing of the bolt — Bolt: dimensions and thread details

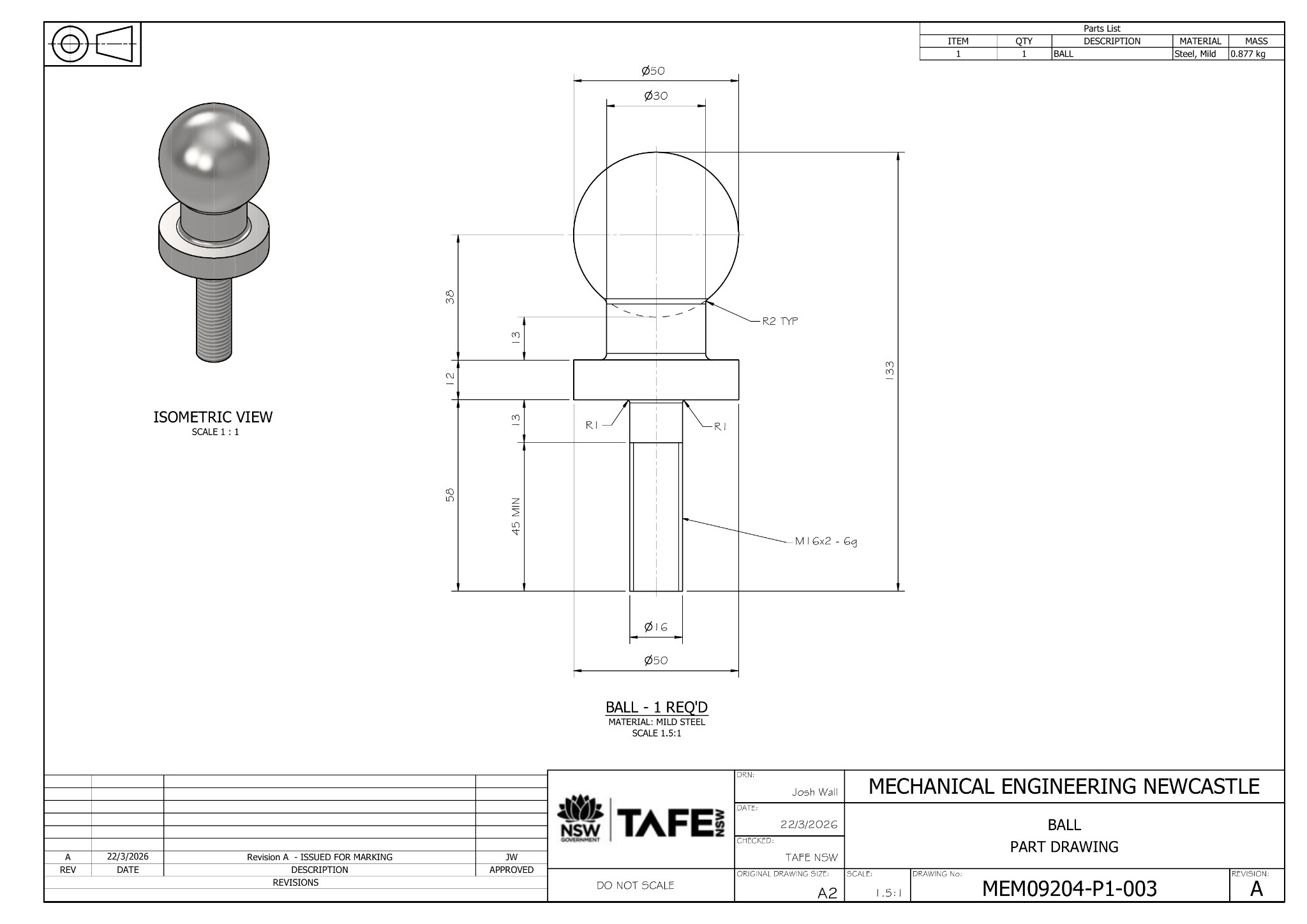

Dimensioned detail drawing of the tow ball — Ball: spherical profile and mounting features

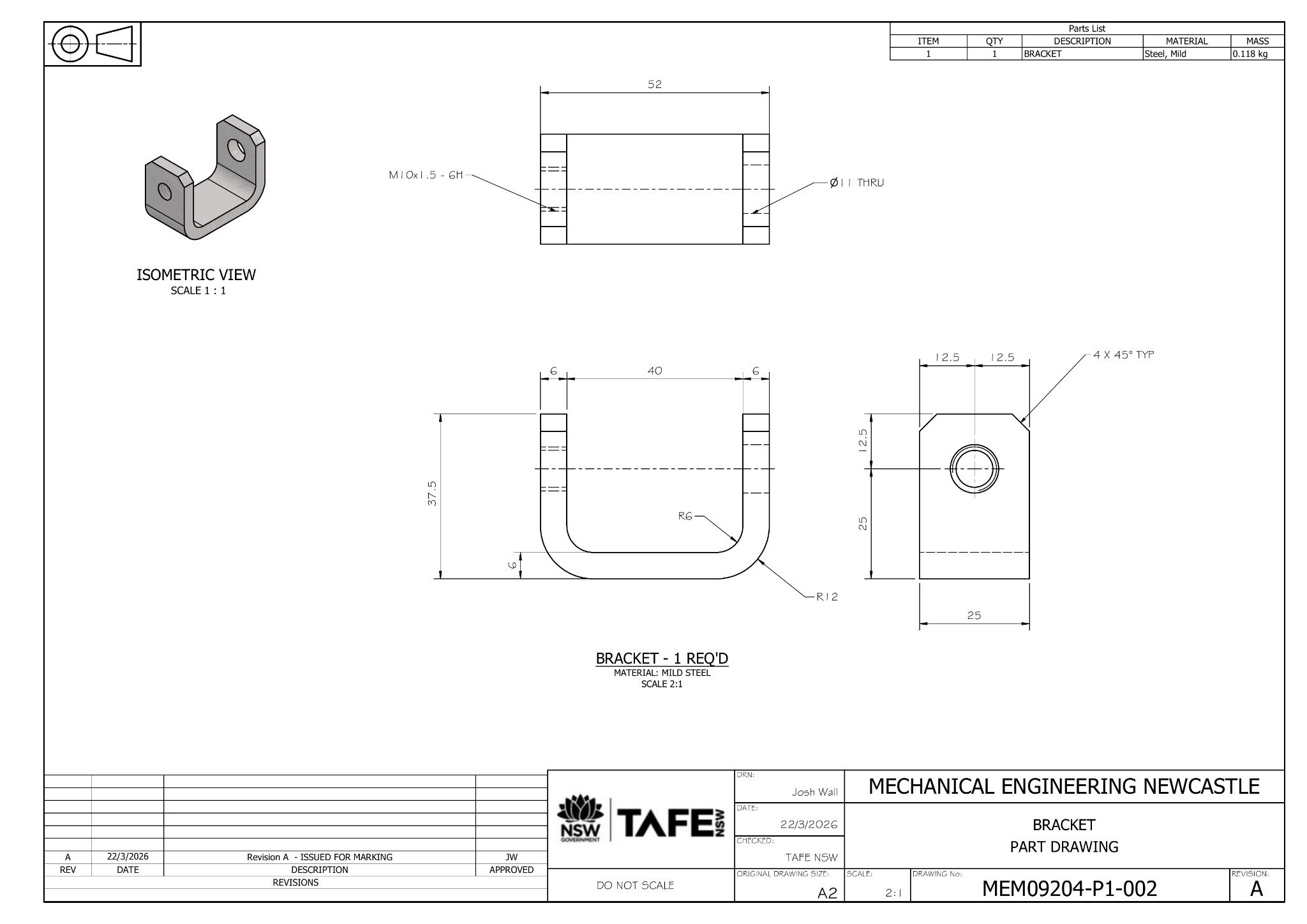

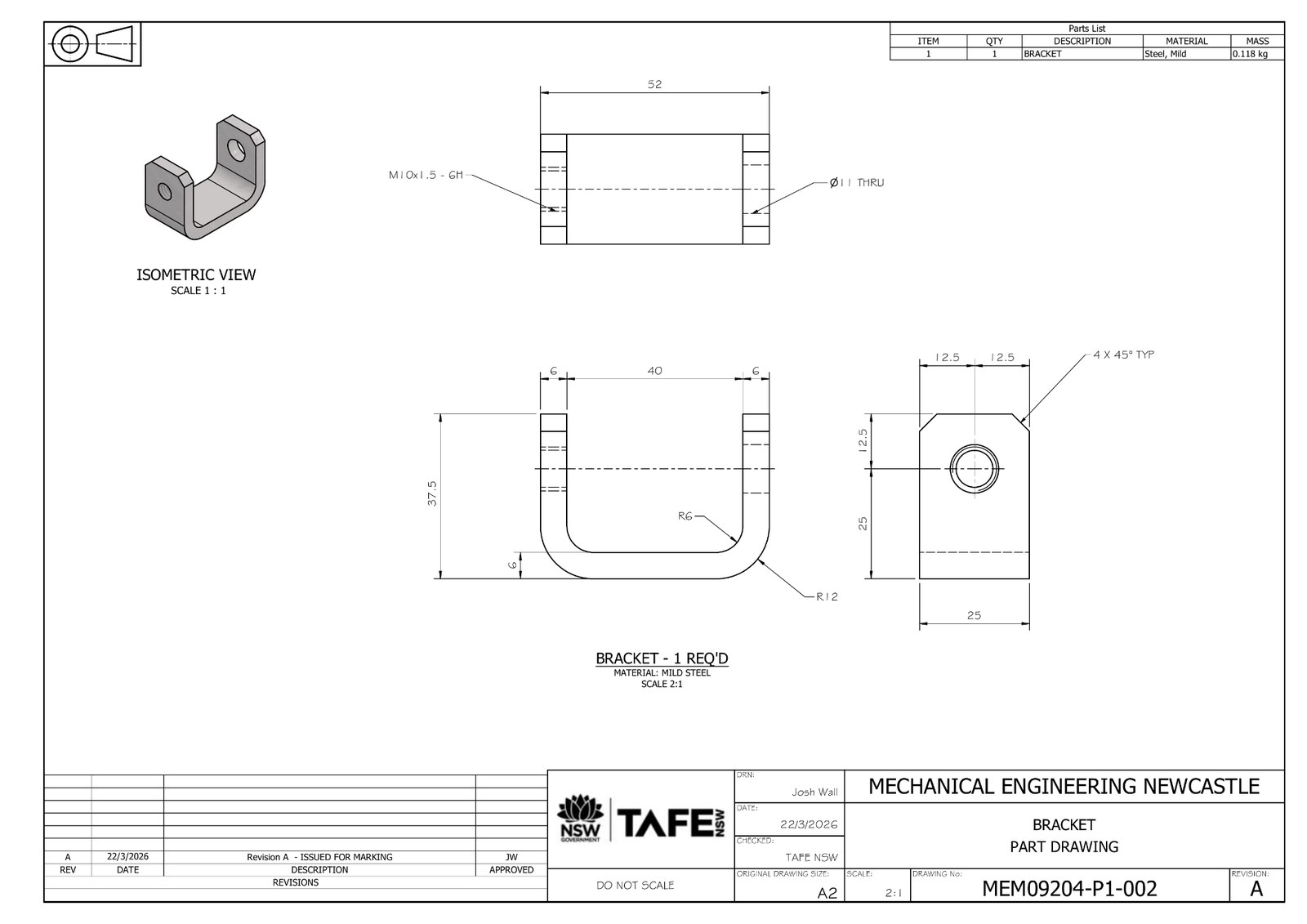

Dimensioned detail drawing of the coupling bracket — Bracket: mounting features and datum details

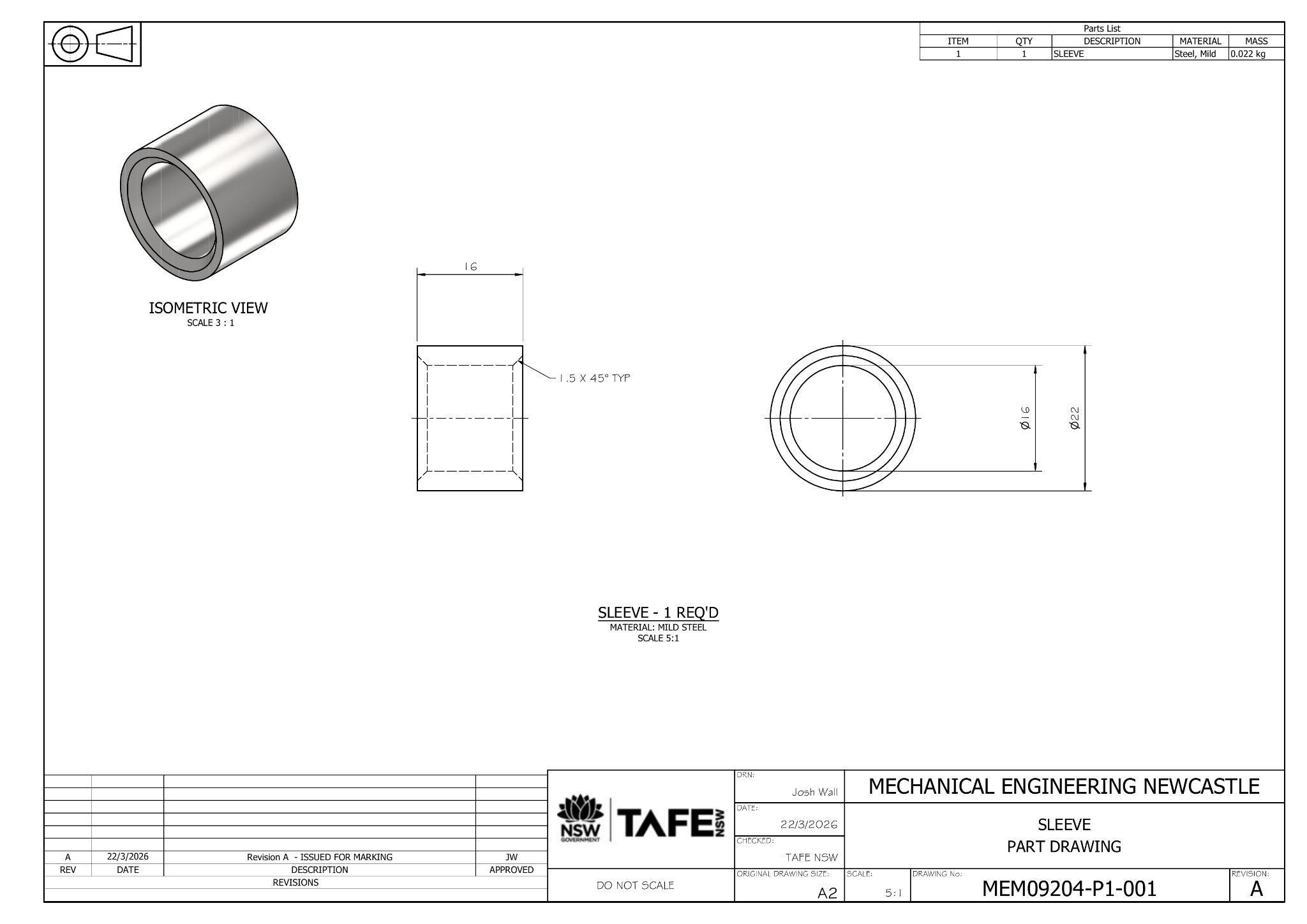

Dimensioned detail drawing of the sleeve — Sleeve: bore and mating-diameter details

View coupling drawings — PDF, 6 sheets, 1.3 MB

Model

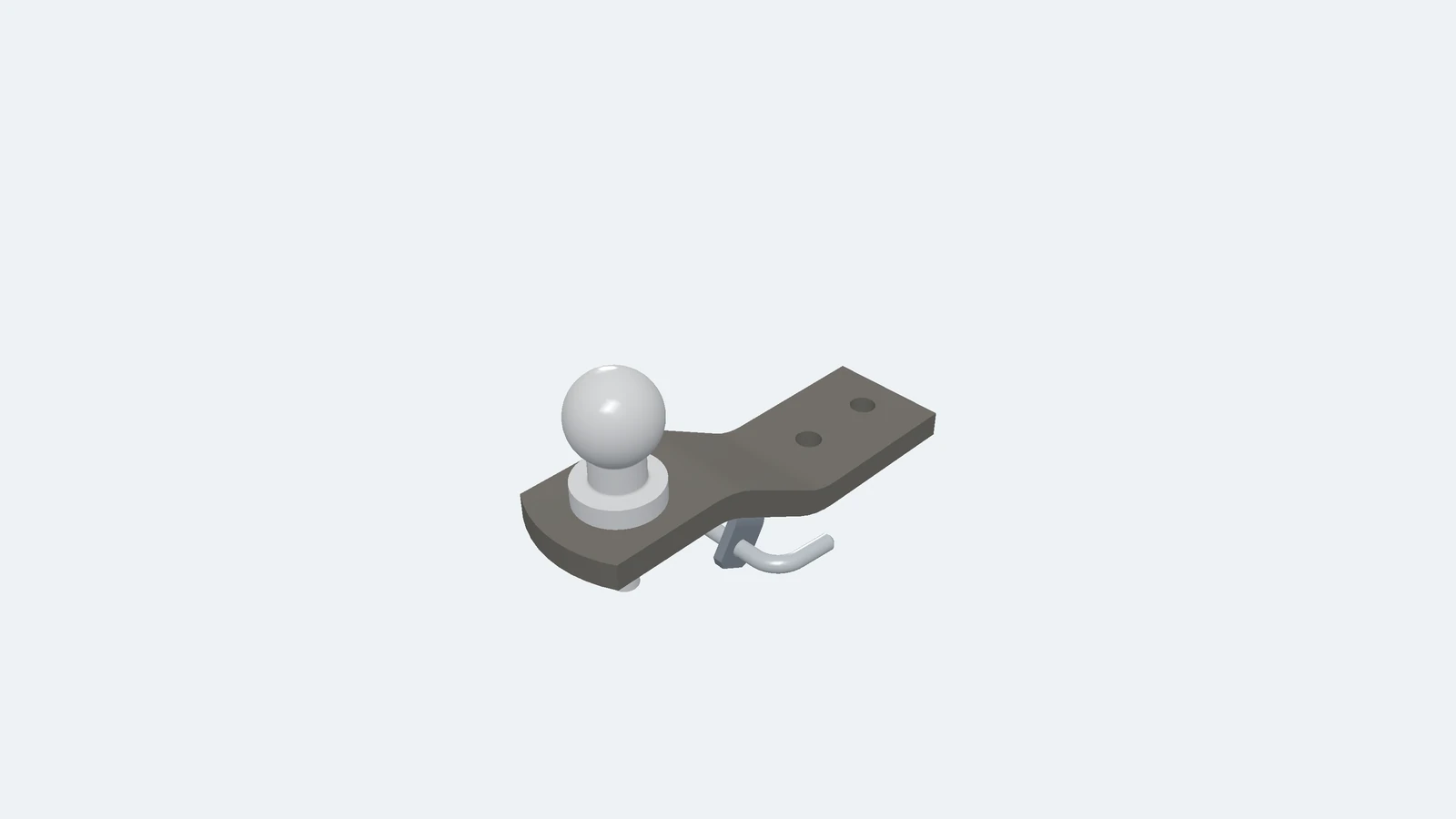

The ball towing coupling in three dimensions, viewed from above one corner

What I did

Modelled and assembled both mechanisms, then drew orthographic and section views with fits and surface finishes, and, on each assembly sheet, an exploded isometric tied to a parts list.
Gave the coupling a detail sheet for each fabricated part and per-component masses in its parts list, and inserted its washer and nut from the ISO metric parts catalogue rather than drawing standard parts.
