A custom adapter that moves the battery off an AMVR battery head strap and onto an HTC VIVE Deluxe Audio Strap fitted to a Meta Quest 2. The main modelling challenge was matching the battery’s non-standard curvature to a practical mounting interface.

Reverse engineering · Interface design · Prototyping

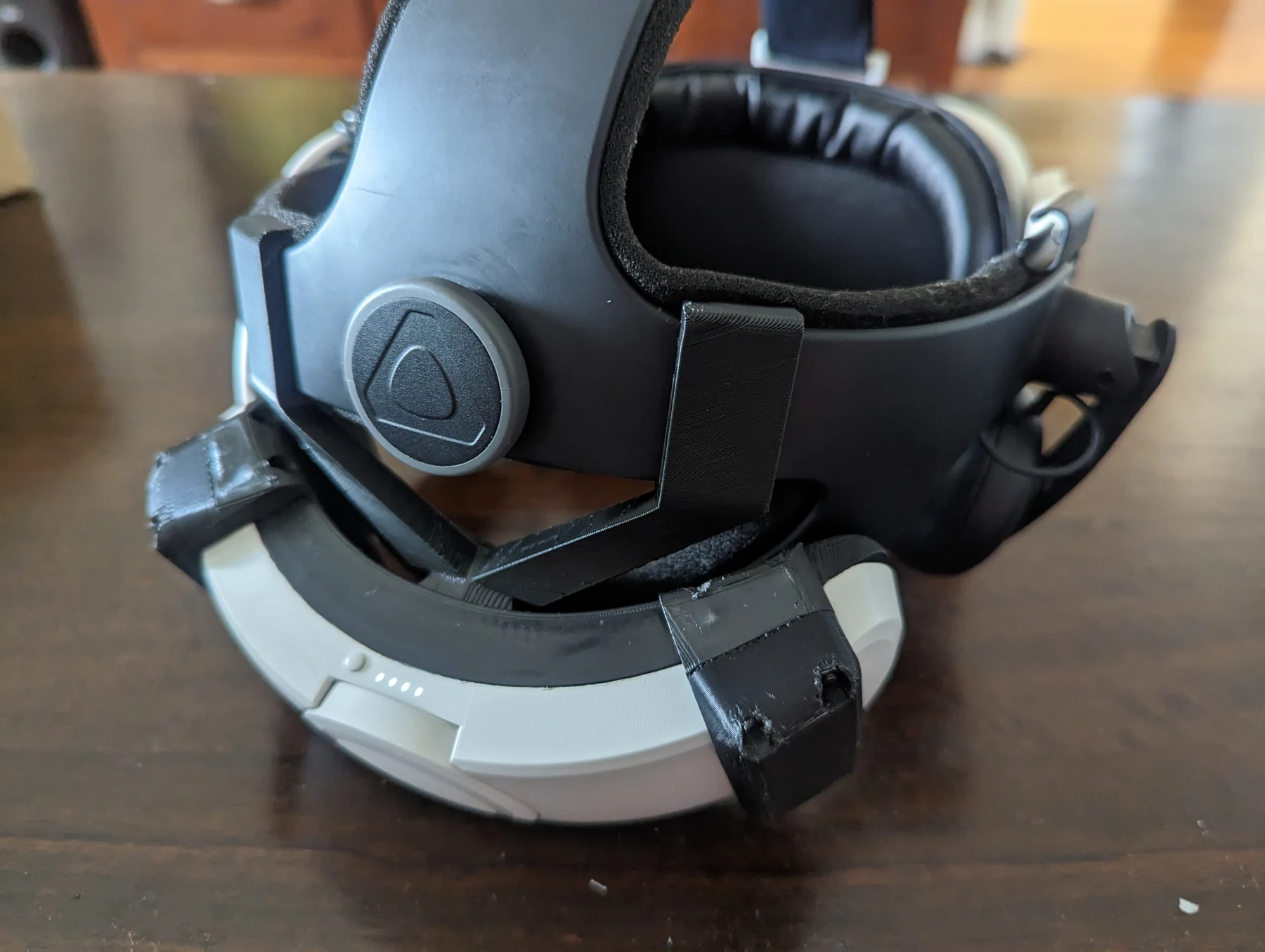

The fabricated adapter fitted to the headset

What I did

Used a reference photograph of the battery against a grid to capture its curved shape.
Modelled the custom interface between the battery and the DAS headstrap, then fabricated the snap-on adapter.
Efficient design was required to minimise weight and retain ergonomics.

Design

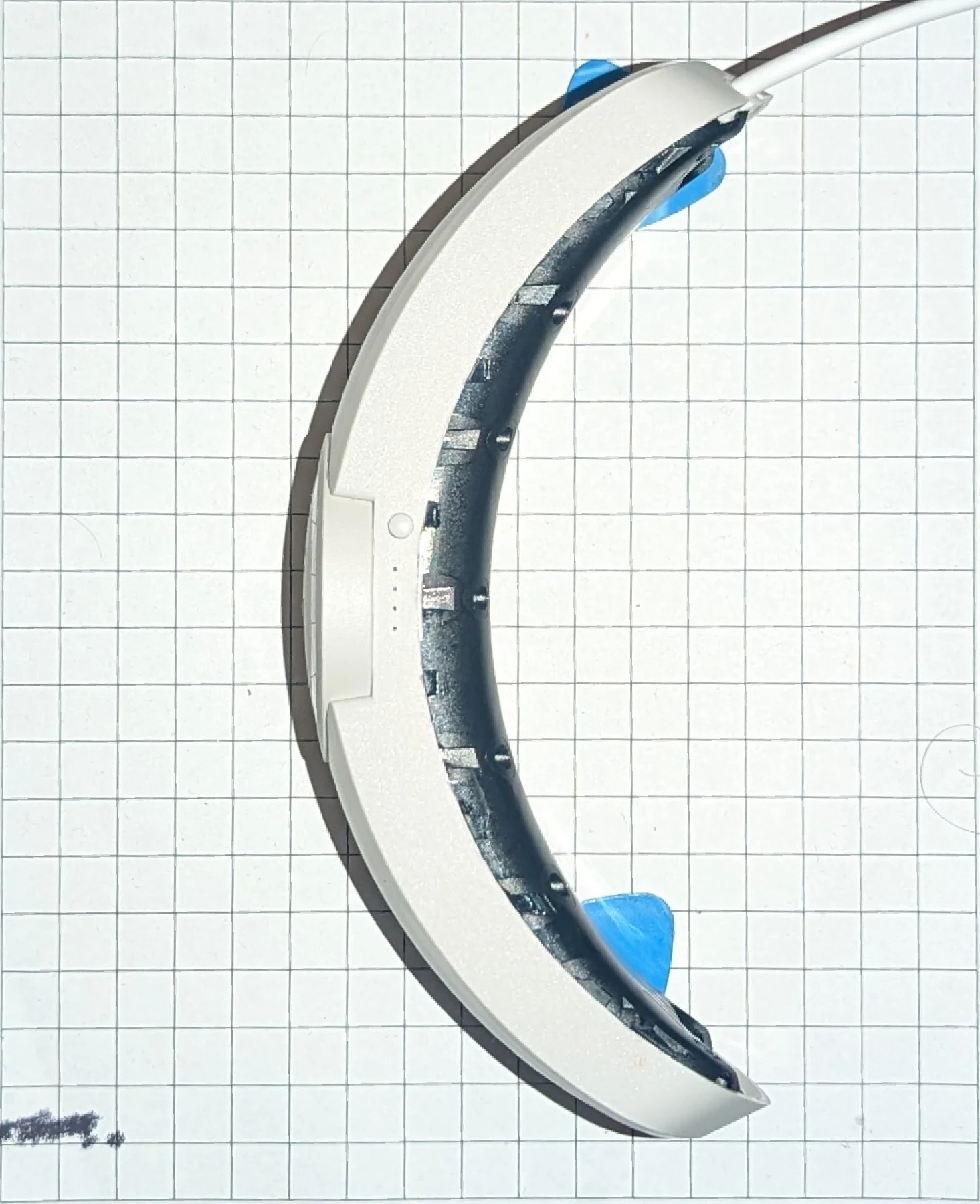

Curved battery photographed against a measurement grid — Reference photograph used to capture the battery profile

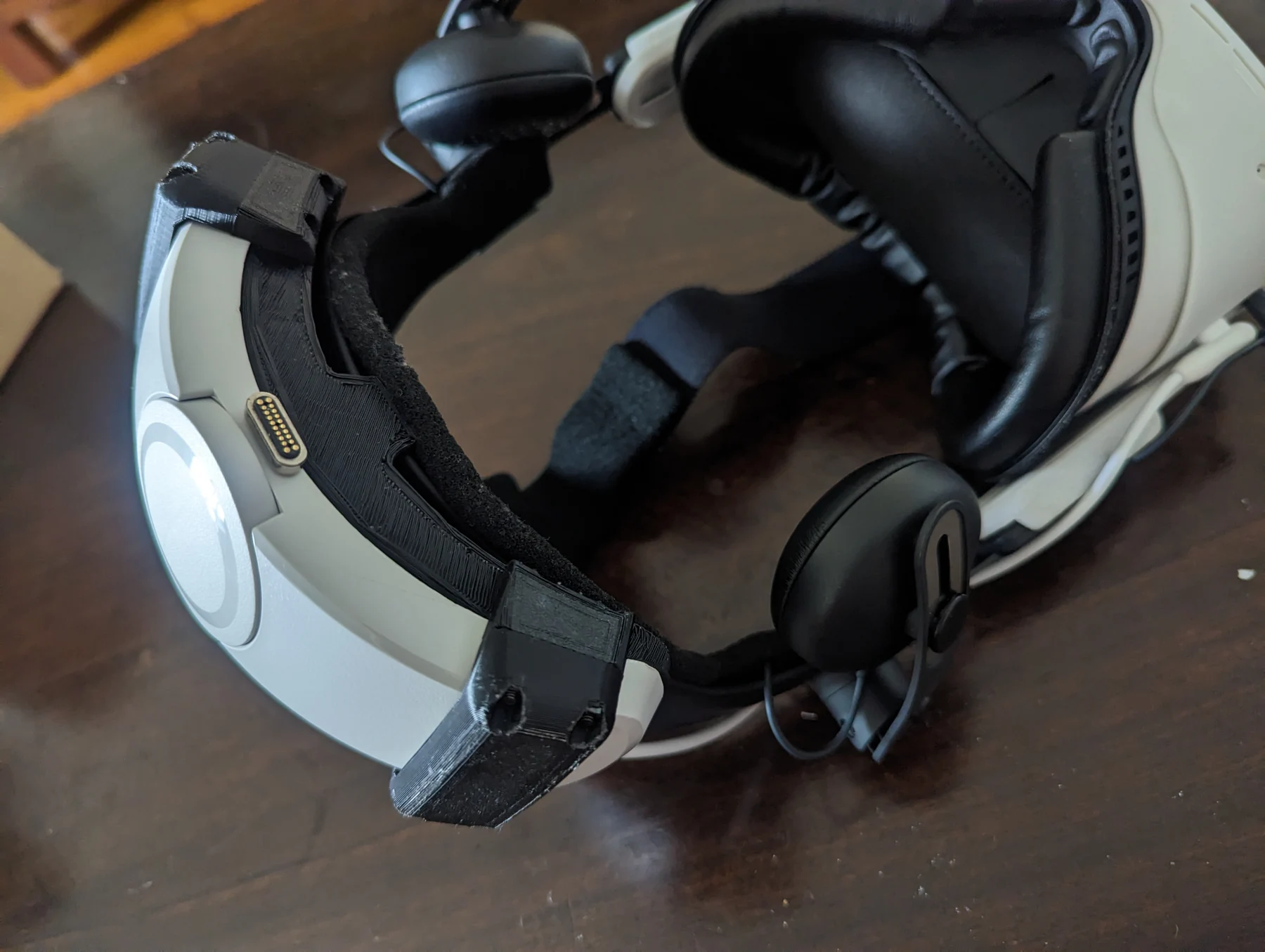

Rear view of the battery adapter installed on the headset — Rear view of the assembled adapter and battery

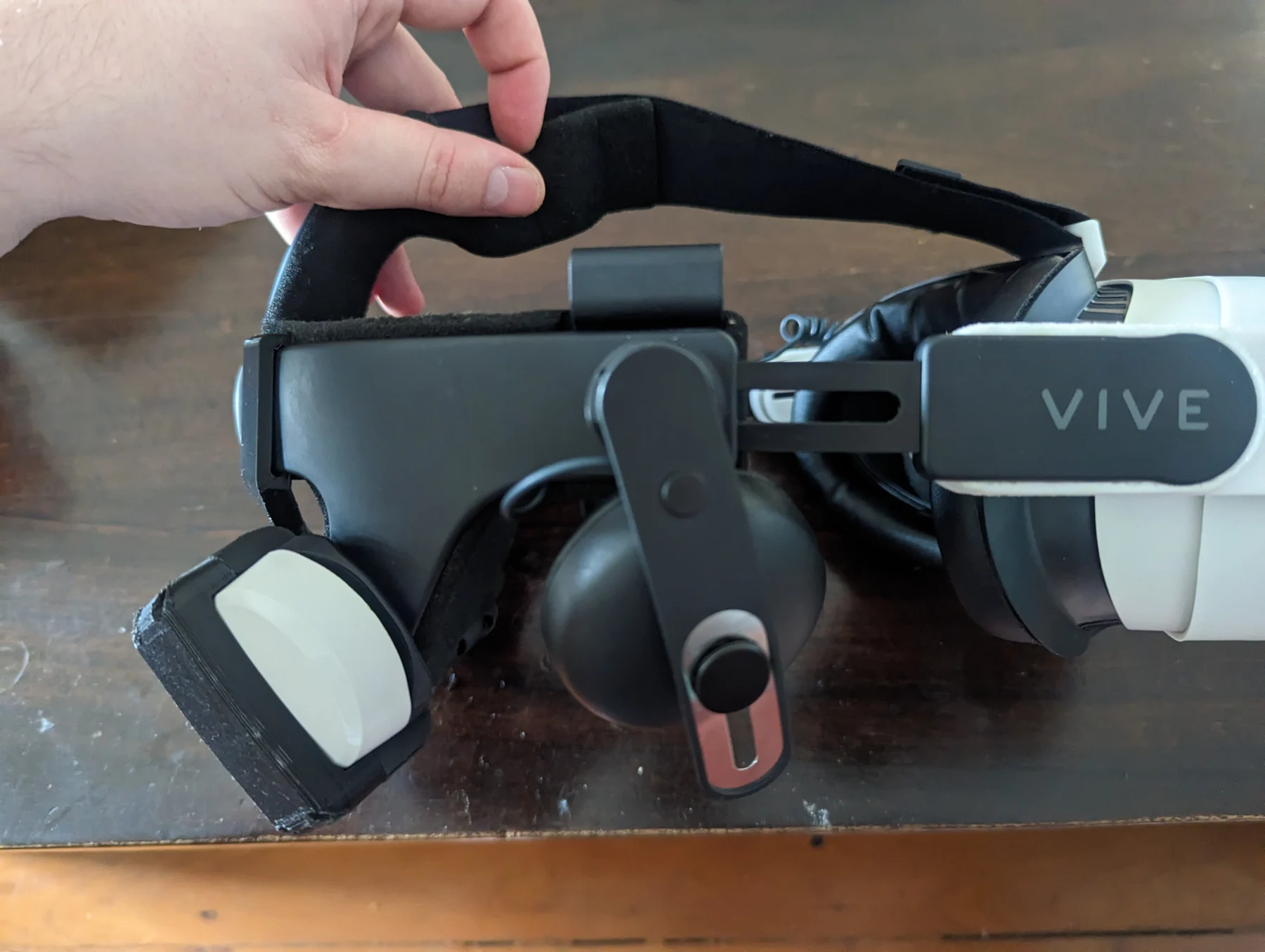

Side view showing adapter clearance around the headset — Side view of the interface with the DAS headstrap

Model

The battery adapter in three dimensions, seen from behind the battery
